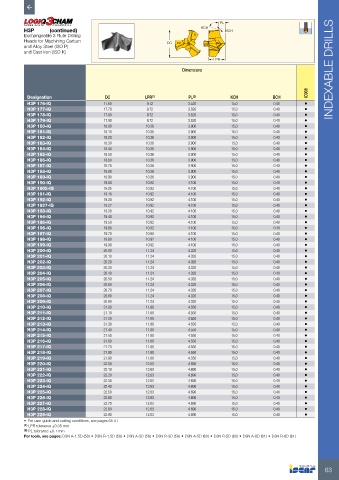

Page 65 - ISCAR(HOLE_MAKING_CATALOG_65)

PL
KCH
H3P (continued) BCH
Exchangeable 3 Flute Drilling
Heads for Machining Carbon DC
and Alloy Steel (ISO P)
and Cast Iron (ISO K)
LPR

Dimensions INDEXABLE DRILLS

IC908
Designation DC LPR (1) PL (2) KCH BCH
H3P 176-IQ 17.60 9.72 3.520 15.0 0.40 •
H3P 177-IQ 17.70 9.72 3.520 15.0 0.40 •
H3P 178-IQ 17.80 9.72 3.520 15.0 0.40 •
H3P 179-IQ 17.90 9.72 3.520 15.0 0.40 •
H3P 180-IQ 18.00 10.36 3.900 15.0 0.40 •
H3P 181-IQ 18.10 10.36 3.900 15.0 0.40 •
H3P 182-IQ 18.20 10.36 3.900 15.0 0.40 •
H3P 183-IQ 18.30 10.36 3.900 15.0 0.40 •
H3P 184-IQ 18.40 10.36 3.900 15.0 0.40 •
H3P 185-IQ 18.50 10.36 3.900 15.0 0.40 •
H3P 186-IQ 18.60 10.36 3.900 15.0 0.40 •
H3P 187-IQ 18.70 10.36 3.900 15.0 0.40 •
H3P 188-IQ 18.80 10.36 3.900 15.0 0.40 •
H3P 189-IQ 18.90 10.36 3.900 15.0 0.40 •
H3P 190-IQ 19.00 10.92 4.100 15.0 0.40 •
H3P 1905-IQ 19.05 10.92 4.100 15.0 0.40 •
H3P 191-IQ 19.10 10.92 4.100 15.0 0.40 •
H3P 192-IQ 19.20 10.92 4.100 15.0 0.40 •
H3P 1927-IQ 19.27 10.92 4.100 15.0 0.40 •
H3P 193-IQ 19.30 10.92 4.100 15.0 0.40 •
H3P 194-IQ 19.40 10.92 4.100 15.0 0.40 •
H3P 195-IQ 19.50 10.92 4.100 15.0 0.40 •
H3P 196-IQ 19.60 10.92 4.100 15.0 0.40 •
H3P 197-IQ 19.70 10.92 4.100 15.0 0.40 •
H3P 198-IQ 19.80 10.92 4.100 15.0 0.40 •
H3P 199-IQ 19.90 10.92 4.100 15.0 0.40 •
H3P 200-IQ 20.00 11.24 4.320 15.0 0.40 •
H3P 201-IQ 20.10 11.24 4.320 15.0 0.40 •
H3P 202-IQ 20.20 11.24 4.320 15.0 0.40 •
H3P 203-IQ 20.30 11.24 4.320 15.0 0.40 •
H3P 204-IQ 20.40 11.24 4.320 15.0 0.40 •
H3P 205-IQ 20.50 11.24 4.320 15.0 0.40 •
H3P 206-IQ 20.60 11.24 4.320 15.0 0.40 •
H3P 207-IQ 20.70 11.24 4.320 15.0 0.40 •
H3P 208-IQ 20.80 11.24 4.320 15.0 0.40 •
H3P 209-IQ 20.90 11.24 4.320 15.0 0.40 •
H3P 210-IQ 21.00 11.80 4.550 15.0 0.40 •
H3P 211-IQ 21.10 11.80 4.550 15.0 0.40 •
H3P 212-IQ 21.20 11.80 4.550 15.0 0.40 •
H3P 213-IQ 21.30 11.80 4.550 15.0 0.40 •
H3P 214-IQ 21.40 11.80 4.550 15.0 0.40 •
H3P 215-IQ 21.50 11.80 4.550 15.0 0.40 •
H3P 216-IQ 21.60 11.80 4.550 15.0 0.40 •
H3P 217-IQ 21.70 11.80 4.550 15.0 0.40 •
H3P 218-IQ 21.80 11.80 4.550 15.0 0.40 •
H3P 219-IQ 21.90 11.80 4.550 15.0 0.40 •
H3P 220-IQ 22.00 12.63 4.690 15.0 0.40 •
H3P 221-IQ 22.10 12.63 4.690 15.0 0.40 •
H3P 222-IQ 22.20 12.63 4.690 15.0 0.40 •
H3P 223-IQ 22.30 12.63 4.690 15.0 0.40 •
H3P 224-IQ 22.40 12.63 4.690 15.0 0.40 •
H3P 225-IQ 22.50 12.63 4.690 15.0 0.40 •
H3P 226-IQ 22.60 12.63 4.690 15.0 0.40 •
H3P 227-IQ 22.70 12.63 4.690 15.0 0.40 •
H3P 228-IQ 22.80 12.63 4.690 15.0 0.40 •
H3P 229-IQ 22.90 12.63 4.690 15.0 0.40 •
• For user guide and cutting conditions, see pages 68-81
(1) LPR tolerance ±0.05 mm
(2) PL tolerance ±0.1 mm
For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)

63
