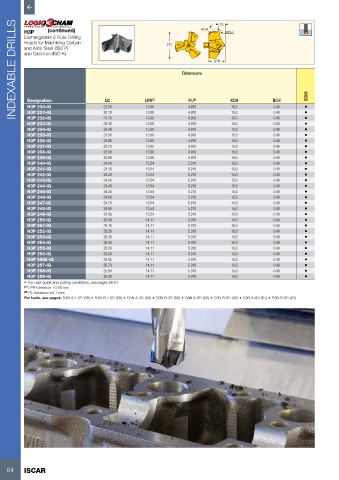

Page 66 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS H3P (continued) DC Dimensions KCH LPR PL BCH IC908

Exchangeable 3 Flute Drilling
Heads for Machining Carbon
and Alloy Steel (ISO P)
and Cast Iron (ISO K)

Designation
DC
H3P 230-IQ
13.00
0.40
15.0
4.910
•
H3P 231-IQ
15.0
0.40
23.10
13.00
4.910
•
H3P 232-IQ
13.00
23.20
15.0
4.910
0.40
•
15.0
13.00
0.40
4.910
23.30
H3P 233-IQ 23.00 LPR (1) PL (2) KCH BCH •
H3P 234-IQ 23.40 13.00 4.910 15.0 0.40 •
H3P 235-IQ 23.50 13.00 4.910 15.0 0.40 •
H3P 236-IQ 23.60 13.00 4.910 15.0 0.40 •
H3P 237-IQ 23.70 13.00 4.910 15.0 0.40 •
H3P 238-IQ 23.80 13.00 4.910 15.0 0.40 •
H3P 239-IQ 23.90 13.00 4.910 15.0 0.40 •
H3P 240-IQ 24.00 13.54 5.210 15.0 0.40 •
H3P 241-IQ 24.10 13.54 5.210 15.0 0.40 •
H3P 242-IQ 24.20 13.54 5.210 15.0 0.40 •
H3P 243-IQ 24.30 13.54 5.210 15.0 0.40 •
H3P 244-IQ 24.40 13.54 5.210 15.0 0.40 •
H3P 245-IQ 24.50 13.54 5.210 15.0 0.40 •
H3P 246-IQ 24.60 13.54 5.210 15.0 0.40 •
H3P 247-IQ 24.70 13.54 5.210 15.0 0.40 •
H3P 248-IQ 24.80 13.54 5.210 15.0 0.40 •
H3P 249-IQ 24.90 13.54 5.210 15.0 0.40 •
H3P 250-IQ 25.00 14.11 5.310 15.0 0.40 •
H3P 251-IQ 25.10 14.11 5.310 15.0 0.40 •
H3P 252-IQ 25.20 14.11 5.310 15.0 0.40 •
H3P 253-IQ 25.30 14.11 5.310 15.0 0.40 •
H3P 254-IQ 25.40 14.11 5.310 15.0 0.40 •
H3P 255-IQ 25.50 14.11 5.310 15.0 0.40 •
H3P 256-IQ 25.60 14.11 5.310 15.0 0.40 •
H3P 2565-IQ 25.65 14.11 5.310 15.0 0.40 •
H3P 257-IQ 25.70 14.11 5.310 15.0 0.40 •
H3P 258-IQ 25.80 14.11 5.310 15.0 0.40 •
H3P 259-IQ 25.90 14.11 5.310 15.0 0.40 •
• For user guide and cutting conditions, see pages 68-81
(1) LPR tolerance ±0.05 mm
(2) PL tolerance ±0.1 mm
For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)
