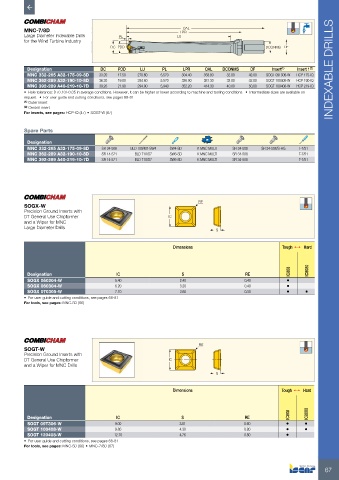

OAL
          MNC-7/8D                                              LPR
          Large Diameter Indexable Drills   PL                 LU
          for the Wind Turbine Industry
                                        DC PDD                                                DCONMS  DF


           Designation              DC    PDD     LU      PL     LPR     OAL   DCONMS    DF      Insert (1)  Insert 1 (2) INDEXABLE DRILLS
           MNC 332-265 A32-175-09-8D  33.20  17.50  270.60  5.570  304.40  358.80  32.00  42.00  SOGT 09T306-W  HCP 175-IQ
           MNC 362-289 A32-190-10-8D  36.20  19.00  294.60  5.570  326.90  381.30  32.00  42.00  SOGT 100408-W  HCP 190-IQ
           MNC 392-289 A40-219-10-7D  39.20  21.90  294.90  5.940  352.20  414.30  40.00  50.00  SOGT 100408-W  HCP 219-IQ
          •  Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions   •  Intermediate sizes are available on
          request   •  For user guide and cutting conditions, see pages 68-81
          (1)  Outer insert
          (2)  Central insert
          For inserts, see pages: HCP-IQ (47) • SOGT-W (67)

          Spare Parts

           Designation
           MNC 332-265 A32-175-09-8D  SR 34-506  BLD T09/M7-SW4  SW4-SD  K MNC MULTI  SR 34-508  SR 34-508/S-HG  T-7/51
           MNC 362-289 A32-190-10-8D  SR 14-571  BLD T10/S7  SW6-SD   K MNC MULTI  SR 34-508              T-7/51
           MNC 392-289 A40-219-10-7D  SR 14-571  BLD T10/S7  SW6-SD   K MNC MULTI  SR 34-508              T-7/51








                                                                       RE
          SOGX-W
          Precision Ground Inserts with
          DT General Use Chipformer                         IC
          and a Wiper for MNC
          Large Diameter Drills
                                                                             S


                                                              Dimensions                            Tough 1   Hard




           Designation                    IC                     S                     RE              IC808  IC8080
           SOGX 050204-W                 5.40                   2.40                   0.40           •
           SOGX 060304-W                 6.20                   3.20                   0.40           •
           SOGX 070305-W                 7.70                   3.60                   0.50           •     •
          •  For user guide and cutting conditions, see pages 68-81
          For tools, see pages: MNC-5D (66)







                                                                       RE
          SOGT-W
          Precision Ground Inserts with
          DT General Use Chipformer                         IC
          and a Wiper for MNC Drills
                                                                             S


                                                              Dimensions                            Tough 1   Hard



                                                                                                       IC808  IC8080
           Designation                    IC                     S                     RE
           SOGT 09T306-W                 9.00                   3.81                   0.60           •     •
           SOGT 100408-W                 9.80                   4.30                   0.80           •     •
           SOGT 120408-W                 12.70                  4.76                   0.80           •
          •  For user guide and cutting conditions, see pages 68-81
          For tools, see pages: MNC-5D (66) • MNC-7/8D (67)
