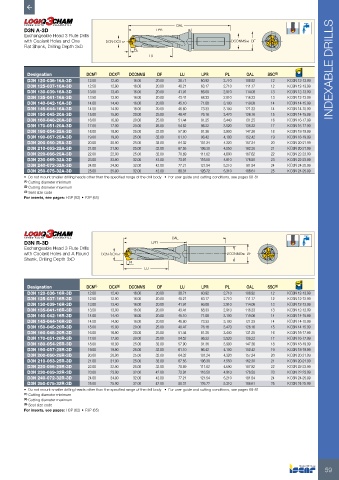

OAL

D3N A-3D LPR
Exchangeable Head 3 Flute Drills
with Coolant Holes and One DCN-DCX k7 DCONMSh6 DF
Flat Shank, Drilling Depth 3xD
PL
LU

Designation DCN (1) DCX (2) DCONMS DF LU LPR PL OAL SSC (3) INDEXABLE DRILLS
D3N 120-036-16A-3D 12.00 12.40 16.00 20.00 38.71 60.92 2.710 108.92 12 K D3N 12-13.99
D3N 125-037-16A-3D 12.50 12.90 16.00 20.00 40.21 63.17 2.710 111.17 12 K D3N 12-13.99
D3N 130-039-16A-3D 13.00 13.40 16.00 20.00 41.91 66.08 2.910 114.08 13 K D3N 12-13.99
D3N 135-041-16A-3D 13.50 13.90 16.00 20.00 43.41 68.33 2.910 116.33 13 K D3N 12-13.99
D3N 140-042-16A-3D 14.00 14.40 16.00 20.00 45.10 71.08 3.100 119.08 14 K D3N 14-15.99
D3N 145-044-16A-3D 14.50 14.90 16.00 20.00 46.60 73.33 3.100 121.33 14 K D3N 14-15.99
D3N 150-045-20A-3D 15.00 15.90 20.00 25.00 48.47 76.16 3.470 126.16 15 K D3N 14-15.99
D3N 160-048-20A-3D 16.00 16.90 20.00 25.00 51.44 81.25 3.440 131.25 16 K D3N 16-17.99
D3N 170-051-20A-3D 17.00 17.90 20.00 25.00 54.52 86.22 3.520 136.22 17 K D3N 16-17.99
D3N 180-054-25A-3D 18.00 18.90 25.00 32.00 57.90 91.36 3.900 147.36 18 K D3N 18-19.99
D3N 190-057-25A-3D 19.00 19.90 25.00 32.00 61.10 96.42 4.100 152.42 19 K D3N 18-19.99
D3N 200-060-25A-3D 20.00 20.90 25.00 32.00 64.32 101.24 4.320 157.24 20 K D3N 20-21.99
D3N 210-063-25A-3D 21.00 21.90 25.00 32.00 67.55 106.30 4.550 162.30 21 K D3N 20-21.99
D3N 220-066-25A-3D 22.00 22.90 25.00 32.00 70.69 111.62 4.690 167.62 22 K D3N 22-23.99
D3N 230-069-32A-3D 23.00 23.90 32.00 42.00 73.91 116.50 4.910 176.50 23 K D3N 22-23.99
D3N 240-072-32A-3D 24.00 24.90 32.00 42.00 77.21 121.54 5.210 181.54 24 K D3N 24-25.99
D3N 250-075-32A-3D 25.00 25.90 32.00 42.00 80.31 126.72 5.310 186.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)

OAL

D3N R-3D LPR
Exchangeable Head 3 Flute Drills
with Coolant Holes and A Round DCN-DCX k7 DCONMSh6 DF
Shank, Drilling Depth 3xD
PL
LU

Designation DCN (1) DCX (2) DCONMS DF LU LPR PL OAL SSC (3)
D3N 120-036-16R-3D 12.00 12.40 16.00 20.00 38.71 60.92 2.710 108.92 12 K D3N 12-13.99
D3N 125-037-16R-3D 12.50 12.90 16.00 20.00 40.21 63.17 2.710 111.17 12 K D3N 12-13.99
D3N 130-039-16R-3D 13.00 13.40 16.00 20.00 41.91 66.08 2.910 114.08 13 K D3N 12-13.99
D3N 135-041-16R-3D 13.50 13.90 16.00 20.00 43.41 68.33 2.910 116.33 13 K D3N 12-13.99
D3N 140-042-16R-3D 14.00 14.40 16.00 20.00 45.10 71.08 3.100 119.08 14 K D3N 14-15.99
D3N 145-044-16R-3D 14.50 14.90 16.00 20.00 46.60 73.33 3.100 121.33 14 K D3N 14-15.99
D3N 150-045-20R-3D 15.00 15.90 20.00 25.00 48.47 76.16 3.470 126.16 15 K D3N 14-15.99
D3N 160-048-20R-3D 16.00 16.90 20.00 25.00 51.44 81.25 3.440 131.25 16 K D3N 16-17.99
D3N 170-051-20R-3D 17.00 17.90 20.00 25.00 54.52 86.22 3.520 136.22 17 K D3N 16-17.99
D3N 180-054-25R-3D 18.00 18.90 25.00 32.00 57.90 91.36 3.900 147.36 18 K D3N 18-19.99
D3N 190-057-25R-3D 19.00 19.90 25.00 32.00 61.10 96.42 4.100 152.42 19 K D3N 18-19.99
D3N 200-060-25R-3D 20.00 20.90 25.00 32.00 64.32 101.24 4.320 157.24 20 K D3N 20-21.99
D3N 210-063-25R-3D 21.00 21.90 25.00 32.00 67.55 106.30 4.550 162.30 21 K D3N 20-21.99
D3N 220-066-25R-3D 22.00 22.90 25.00 32.00 70.69 111.62 4.690 167.82 22 K D3N 22-23.99
D3N 230-069-32R-3D 23.00 23.90 32.00 42.00 73.91 116.50 4.910 176.50 23 K D3N 22-23.99
D3N 240-072-32R-3D 24.00 24.90 32.00 42.00 77.21 121.54 5.210 181.54 24 K D3N 24-25.99
D3N 250-075-32R-3D 25.00 25.90 32.00 42.00 80.31 126.72 5.310 186.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
