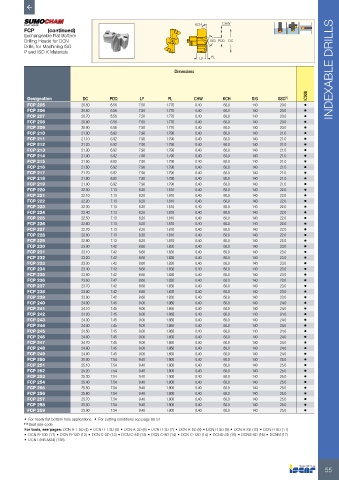

Page 57 - ISCAR(HOLE_MAKING_CATALOG_65)

KCH CHW

FCP (continued)
Exchangeable Flat Bottom
Drilling Heads for DCN SIG PDD DC
Drills, for Machining ISO
P and ISO K Materials
LF PL

Dimensions INDEXABLE DRILLS

IC908
Designation DC PDD LF PL CHW KCH SIG SSC (1)
FCP 205 20.50 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 206 20.60 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 207 20.70 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 208 20.80 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 209 20.90 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 210 21.00 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 211 21.10 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 212 21.20 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 213 21.30 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 214 21.40 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 215 21.50 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 216 21.60 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 217 21.70 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 218 21.80 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 219 21.90 6.92 7.90 1.790 0.40 60.0 140 21.0 •
FCP 220 22.00 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 221 22.10 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 222 22.20 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 223 22.30 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 224 22.40 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 225 22.50 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 226 22.60 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 227 22.70 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 228 22.80 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 229 22.90 7.13 8.20 1.810 0.40 60.0 140 22.0 •
FCP 230 23.00 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 231 23.10 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 232 23.20 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 233 23.30 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 234 23.40 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 235 23.50 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 236 23.60 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 237 23.70 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 238 23.80 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 239 23.90 7.42 8.60 1.830 0.40 60.0 140 23.0 •
FCP 240 24.00 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 241 24.10 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 242 24.20 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 243 24.30 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 244 24.40 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 245 24.50 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 246 24.60 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 247 24.70 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 248 24.80 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 249 24.90 7.45 9.00 1.860 0.40 60.0 140 24.0 •
FCP 250 25.00 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 251 25.10 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 252 25.20 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 253 25.30 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 254 25.40 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 255 25.50 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 256 25.60 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 257 25.70 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 258 25.80 7.54 9.40 1.900 0.40 60.0 140 25.0 •
FCP 259 25.90 7.54 9.40 1.900 0.40 60.0 140 25.0 •
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
