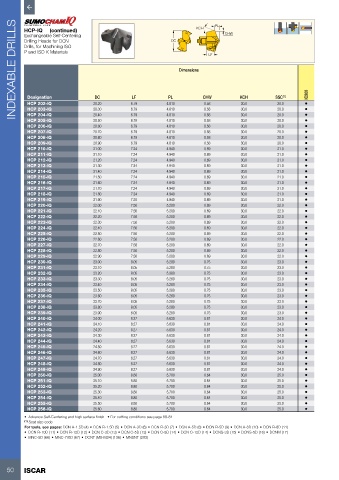

Page 52 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS HCP-IQ (continued) DC Dimensions KCH LF PL CHW IC908

Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials

DC
Designation
PL
LF
HCP 202-IQ
30.0
0.58
20.0
•
HCP 203-IQ
20.30
0.58
30.0
6.79
4.810
20.0
•
HCP 204-IQ
30.0
6.79
20.40
20.0
0.58
4.810
•
HCP 205-IQ 20.20 6.79 4.810 CHW KCH SSC (1) •
20.50
4.810
20.0
30.0
0.58
6.79
HCP 206-IQ 20.60 6.79 4.810 0.58 30.0 20.0 •
HCP 207-IQ 20.70 6.79 4.810 0.58 30.0 20.0 •
HCP 208-IQ 20.80 6.79 4.810 0.58 30.0 20.0 •
HCP 209-IQ 20.90 6.79 4.810 0.58 30.0 20.0 •
HCP 210-IQ 21.00 7.24 4.940 0.69 30.0 21.0 •
HCP 211-IQ 21.10 7.24 4.940 0.69 30.0 21.0 •
HCP 212-IQ 21.20 7.24 4.940 0.69 30.0 21.0 •
HCP 213-IQ 21.30 7.24 4.940 0.69 30.0 21.0 •
HCP 214-IQ 21.40 7.24 4.940 0.69 30.0 21.0 •
HCP 215-IQ 21.50 7.24 4.940 0.69 30.0 21.0 •
HCP 216-IQ 21.60 7.24 4.940 0.69 30.0 21.0 •
HCP 217-IQ 21.70 7.24 4.940 0.69 30.0 21.0 •
HCP 218-IQ 21.80 7.24 4.940 0.69 30.0 21.0 •
HCP 219-IQ 21.90 7.20 4.940 0.69 30.0 21.0 •
HCP 220-IQ 22.00 7.56 5.200 0.69 30.0 22.0 •
HCP 221-IQ 22.10 7.56 5.200 0.69 30.0 22.0 •
HCP 222-IQ 22.20 7.56 5.200 0.69 30.0 22.0 •
HCP 223-IQ 22.30 7.56 5.200 0.69 30.0 22.0 •
HCP 224-IQ 22.40 7.56 5.200 0.69 30.0 22.0 •
HCP 225-IQ 22.50 7.56 5.200 0.69 30.0 22.0 •
HCP 226-IQ 22.60 7.56 5.200 0.69 30.0 22.0 •
HCP 227-IQ 22.70 7.56 5.200 0.69 30.0 22.0 •
HCP 228-IQ 22.80 7.56 5.200 0.69 30.0 22.0 •
HCP 229-IQ 22.90 7.56 5.200 0.69 30.0 22.0 •
HCP 230-IQ 23.00 8.05 5.280 0.75 30.0 23.0 •
HCP 231-IQ 23.10 8.05 5.280 0.75 30.0 23.0 •
HCP 232-IQ 23.20 8.05 5.280 0.75 30.0 23.0 •
HCP 233-IQ 23.30 8.05 5.280 0.75 30.0 23.0 •
HCP 234-IQ 23.40 8.05 5.280 0.75 30.0 23.0 •
HCP 235-IQ 23.50 8.05 5.280 0.75 30.0 23.0 •
HCP 236-IQ 23.60 8.05 5.280 0.75 30.0 23.0 •
HCP 237-IQ 23.70 8.05 5.280 0.75 30.0 23.0 •
HCP 238-IQ 23.80 8.05 5.280 0.75 30.0 23.0 •
HCP 239-IQ 23.90 8.05 5.280 0.75 30.0 23.0 •
HCP 240-IQ 24.00 8.27 5.630 0.81 30.0 24.0 •
HCP 241-IQ 24.10 8.27 5.630 0.81 30.0 24.0 •
HCP 242-IQ 24.20 8.27 5.630 0.81 30.0 24.0 •
HCP 243-IQ 24.30 8.27 5.630 0.81 30.0 24.0 •
HCP 244-IQ 24.40 8.27 5.630 0.81 30.0 24.0 •
HCP 245-IQ 24.50 8.27 5.630 0.81 30.0 24.0 •
HCP 246-IQ 24.60 8.27 5.630 0.81 30.0 24.0 •
HCP 247-IQ 24.70 8.27 5.630 0.81 30.0 24.0 •
HCP 248-IQ 24.80 8.27 5.630 0.81 30.0 24.0 •
HCP 249-IQ 24.90 8.27 5.630 0.81 30.0 24.0 •
HCP 250-IQ 25.00 8.80 5.700 0.64 30.0 25.0 •
HCP 251-IQ 25.10 8.80 5.700 0.64 30.0 25.0 •
HCP 252-IQ 25.20 8.80 5.700 0.64 30.0 25.0 •
HCP 253-IQ 25.30 8.80 5.700 0.64 30.0 25.0 •
HCP 254-IQ 25.40 8.80 5.700 0.64 30.0 25.0 •
HCP 255-IQ 25.50 8.80 5.700 0.64 30.0 25.0 •
HCP 256-IQ 25.60 8.80 5.700 0.64 30.0 25.0 •
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
