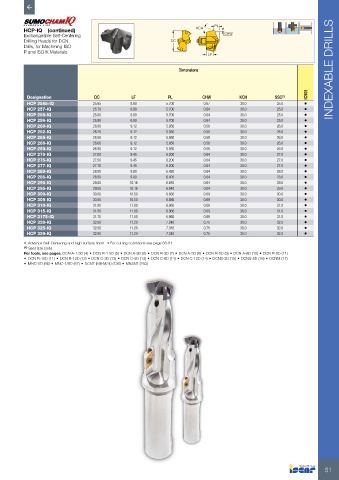

Page 53 - ISCAR(HOLE_MAKING_CATALOG_65)

PL
KCH
HCP-IQ (continued)
Exchangeable Self-Centering CHW
Drilling Heads for DCN DC
Drills, for Machining ISO
P and ISO K Materials
LF

Dimensions INDEXABLE DRILLS

IC908
Designation DC LF PL CHW KCH SSC (1)
HCP 2565-IQ 25.65 8.80 5.700 0.67 30.0 25.0 •
HCP 257-IQ 25.70 8.80 5.700 0.64 30.0 25.0 •
HCP 258-IQ 25.80 8.80 5.700 0.64 30.0 25.0 •
HCP 259-IQ 25.90 8.80 5.700 0.64 30.0 25.0 •
HCP 260-IQ 26.00 9.12 5.950 0.58 30.0 26.0 •
HCP 262-IQ 26.20 9.12 5.950 0.58 30.0 26.0 •
HCP 265-IQ 26.50 9.12 5.950 0.58 30.0 26.0 •
HCP 266-IQ 26.60 9.12 5.950 0.58 30.0 26.0 •
HCP 269-IQ 26.90 9.12 5.950 0.58 30.0 26.0 •
HCP 270-IQ 27.00 9.45 6.200 0.64 30.0 27.0 •
HCP 275-IQ 27.50 9.45 6.200 0.64 30.0 27.0 •
HCP 277-IQ 27.70 9.45 6.200 0.64 30.0 27.0 •
HCP 280-IQ 28.00 9.80 6.420 0.64 30.0 28.0 •
HCP 285-IQ 28.50 9.80 6.420 0.64 30.0 28.0 •
HCP 290-IQ 29.00 10.16 6.640 0.64 30.0 29.0 •
HCP 295-IQ 29.50 10.16 6.640 0.64 30.0 29.0 •
HCP 300-IQ 30.00 10.50 6.880 0.69 30.0 30.0 •
HCP 305-IQ 30.50 10.50 6.880 0.69 30.0 30.0 •
HCP 310-IQ 31.00 11.00 6.960 0.69 30.0 31.0 •
HCP 315-IQ 31.50 11.00 6.960 0.69 30.0 31.0 •
HCP 3175-IQ 31.75 11.00 6.960 0.69 30.0 31.0 •
HCP 320-IQ 32.00 11.20 7.340 0.75 30.0 32.0 •
HCP 325-IQ 32.50 11.20 7.340 0.75 30.0 32.0 •
HCP 329-IQ 32.90 11.20 7.340 0.75 30.0 32.0 •
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)

51
