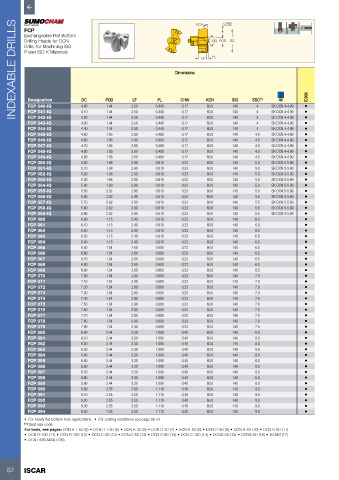

Page 54 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS FCP Dimensions KCH LF SIG PDD CHW DC

Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
PL

PL
Designation
LF
FCP 040-IQ
60.0
4.00
1.44
140
4
0.17
•
FCP 041-IQ
0.440
4
60.0
2.50
1.44
4.10
140
SK DCN 4-4.99
0.17
•
0.17
FCP 042-IQ
0.440
4.20
SK DCN 4-4.99
1.44
4
140
60.0
2.50
•
SK DCN 4-4.99
60.0
2.50
1.44
4
140
0.17
FCP 043-IQ DC PDD 2.50 0.440 CHW KCH SIG SSC (1) SK DCN 4-4.99 • IC908
0.440
4.30
FCP 044-IQ 4.40 1.44 2.50 0.440 0.17 60.0 140 4 SK DCN 4-4.99 •
FCP 045-IQ 4.50 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99 •
FCP 046-IQ 4.60 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99 •
FCP 047-IQ 4.70 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99 •
FCP 048-IQ 4.80 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99 •
FCP 049-IQ 4.90 1.56 2.80 0.480 0.17 60.0 140 4.5 SK DCN 4-4.99 •
FCP 050-IQ 5.00 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99 •
FCP 051-IQ 5.10 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99 •
FCP 052-IQ 5.20 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99 •
FCP 053-IQ 5.30 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99 •
FCP 054-IQ 5.40 1.98 2.90 0.610 0.23 60.0 140 5.0 SK DCN 5-5.99 •
FCP 055-IQ 5.50 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99 •
FCP 056-IQ 5.60 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99 •
FCP 057-IQ 5.70 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99 •
FCP 058-IQ 5.80 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99 •
FCP 059-IQ 5.90 2.02 2.90 0.610 0.23 60.0 140 5.5 SK DCN 5-5.99 •
FCP 060 6.00 1.15 2.40 0.610 0.23 60.0 140 6.0 •
FCP 061 6.10 1.15 2.40 0.610 0.23 60.0 140 6.0 •
FCP 062 6.20 1.15 2.40 0.610 0.23 60.0 140 6.0 •
FCP 063 6.30 1.15 2.40 0.610 0.23 60.0 140 6.0 •
FCP 064 6.40 1.15 2.40 0.610 0.23 60.0 140 6.0 •
FCP 065 6.50 1.54 2.60 0.680 0.23 60.0 140 6.5 •
FCP 066 6.60 1.54 2.60 0.680 0.23 60.0 140 6.5 •
FCP 067 6.70 1.54 2.60 0.680 0.23 60.0 140 6.5 •
FCP 068 6.80 1.54 2.60 0.680 0.23 60.0 140 6.5 •
FCP 069 6.90 1.54 2.60 0.680 0.23 60.0 140 6.5 •
FCP 070 7.00 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 071 7.10 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 072 7.20 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 073 7.30 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 074 7.40 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 075 7.50 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 076 7.60 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 077 7.70 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 078 7.80 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 079 7.90 1.54 2.90 0.680 0.23 60.0 140 7.0 •
FCP 080 8.00 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 081 8.10 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 082 8.20 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 083 8.30 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 084 8.40 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 085 8.50 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 086 8.60 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 087 8.70 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 088 8.80 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 089 8.90 2.44 3.30 1.090 0.40 60.0 140 8.0 •
FCP 090 9.00 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 091 9.10 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 092 9.20 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 093 9.30 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 094 9.40 2.55 3.50 1.110 0.40 60.0 140 9.0 •
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
