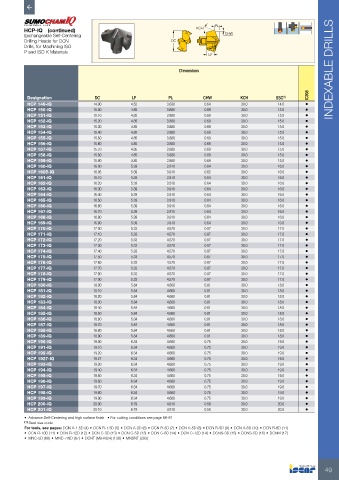

Page 51 - ISCAR(HOLE_MAKING_CATALOG_65)

PL
KCH
HCP-IQ (continued)
Exchangeable Self-Centering CHW
Drilling Heads for DCN DC
Drills, for Machining ISO
P and ISO K Materials
LF

Dimensions INDEXABLE DRILLS

IC908
Designation DC LF PL CHW KCH SSC (1)
HCP 149-IQ 14.90 4.52 3.630 0.64 30.0 14.0 •
HCP 150-IQ 15.00 4.85 3.880 0.69 30.0 15.0 •
HCP 151-IQ 15.10 4.85 3.880 0.69 30.0 15.0 •
HCP 152-IQ 15.20 4.85 3.880 0.69 30.0 15.0 •
HCP 153-IQ 15.30 4.85 3.880 0.69 30.0 15.0 •
HCP 154-IQ 15.40 4.85 3.880 0.69 30.0 15.0 •
HCP 155-IQ 15.50 4.85 3.880 0.69 30.0 15.0 •
HCP 156-IQ 15.60 4.85 3.880 0.69 30.0 15.0 •
HCP 157-IQ 15.70 4.85 3.880 0.69 30.0 15.0 •
HCP 158-IQ 15.80 4.85 3.880 0.69 30.0 15.0 •
HCP 159-IQ 15.90 4.85 3.880 0.69 30.0 15.0 •
HCP 160-IQ 16.00 5.39 3.910 0.64 30.0 16.0 •
HCP 1605-IQ 16.05 5.39 3.910 0.62 30.0 16.0 •
HCP 161-IQ 16.10 5.39 3.910 0.64 30.0 16.0 •
HCP 162-IQ 16.20 5.39 3.910 0.64 30.0 16.0 •
HCP 163-IQ 16.30 5.39 3.910 0.64 30.0 16.0 •
HCP 164-IQ 16.40 5.39 3.910 0.64 30.0 16.0 •
HCP 165-IQ 16.50 5.39 3.910 0.64 30.0 16.0 •
HCP 166-IQ 16.60 5.39 3.910 0.64 30.0 16.0 •
HCP 167-IQ 16.70 5.39 3.910 0.64 30.0 16.0 •
HCP 168-IQ 16.80 5.39 3.910 0.64 30.0 16.0 •
HCP 169-IQ 16.90 5.39 3.910 0.64 30.0 16.0 •
HCP 170-IQ 17.00 5.33 4.570 0.87 30.0 17.0 •
HCP 171-IQ 17.10 5.33 4.570 0.87 30.0 17.0 •
HCP 172-IQ 17.20 5.33 4.570 0.87 30.0 17.0 •
HCP 173-IQ 17.30 5.33 4.570 0.87 30.0 17.0 •
HCP 174-IQ 17.40 5.33 4.570 0.87 30.0 17.0 •
HCP 175-IQ 17.50 5.33 4.570 0.87 30.0 17.0 •
HCP 176-IQ 17.60 5.33 4.570 0.87 30.0 17.0 •
HCP 177-IQ 17.70 5.33 4.570 0.87 30.0 17.0 •
HCP 178-IQ 17.80 5.33 4.570 0.87 30.0 17.0 •
HCP 179-IQ 17.90 5.33 4.570 0.87 30.0 17.0 •
HCP 180-IQ 18.00 5.84 4.660 0.81 30.0 18.0 •
HCP 181-IQ 18.10 5.84 4.660 0.81 30.0 18.0 •
HCP 182-IQ 18.20 5.84 4.660 0.81 30.0 18.0 •
HCP 183-IQ 18.30 5.84 4.660 0.81 30.0 18.0 •
HCP 184-IQ 18.40 5.84 4.660 0.81 30.0 18.0 •
HCP 185-IQ 18.50 5.84 4.660 0.81 30.0 18.0 •
HCP 186-IQ 18.60 5.84 4.660 0.81 30.0 18.0 •
HCP 187-IQ 18.70 5.84 4.660 0.81 30.0 18.0 •
HCP 188-IQ 18.80 5.84 4.660 0.81 30.0 18.0 •
HCP 189-IQ 18.90 5.84 4.660 0.81 30.0 18.0 •
HCP 190-IQ 19.00 6.34 4.660 0.75 30.0 19.0 •
HCP 191-IQ 19.10 6.34 4.660 0.75 30.0 19.0 •
HCP 192-IQ 19.20 6.34 4.660 0.75 30.0 19.0 •
HCP 1927-IQ 19.27 6.34 4.660 0.75 30.0 19.0 •
HCP 193-IQ 19.30 6.34 4.660 0.75 30.0 19.0 •
HCP 194-IQ 19.40 6.34 4.660 0.75 30.0 19.0 •
HCP 195-IQ 19.50 6.34 4.660 0.75 30.0 19.0 •
HCP 196-IQ 19.60 6.34 4.660 0.75 30.0 19.0 •
HCP 197-IQ 19.70 6.34 4.660 0.75 30.0 19.0 •
HCP 198-IQ 19.80 6.34 4.660 0.75 30.0 19.0 •
HCP 199-IQ 19.90 6.34 4.660 0.75 30.0 19.0 •
HCP 200-IQ 20.00 6.79 4.810 0.58 30.0 20.0 •
HCP 201-IQ 20.10 6.79 4.810 0.58 30.0 20.0 •
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)

49
