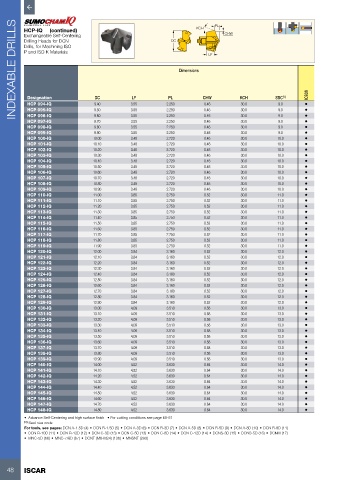

Page 50 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS HCP-IQ (continued) DC Dimensions KCH LF PL CHW IC908

Exchangeable Self-Centering
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials

DC
Designation
PL
LF
HCP 094-IQ
0.46
30.0
9.0
•
2.250
0.46
9.50
3.55
30.0
HCP 095-IQ
9.0
•
HCP 096-IQ
30.0
3.55
9.60
9.0
2.250
0.46
•
9.0
9.70
3.55
2.250
30.0
HCP 097-IQ 9.40 3.55 2.250 CHW KCH SSC (1) •
0.46
HCP 098-IQ 9.80 3.55 2.250 0.46 30.0 9.0 •
HCP 099-IQ 9.90 3.55 2.250 0.46 30.0 9.0 •
HCP 100-IQ 10.00 3.48 2.720 0.46 30.0 10.0 •
HCP 101-IQ 10.10 3.48 2.720 0.46 30.0 10.0 •
HCP 102-IQ 10.20 3.48 2.720 0.46 30.0 10.0 •
HCP 103-IQ 10.30 3.48 2.720 0.46 30.0 10.0 •
HCP 104-IQ 10.40 3.48 2.720 0.46 30.0 10.0 •
HCP 105-IQ 10.50 3.48 2.720 0.46 30.0 10.0 •
HCP 106-IQ 10.60 3.48 2.720 0.46 30.0 10.0 •
HCP 107-IQ 10.70 3.48 2.720 0.46 30.0 10.0 •
HCP 108-IQ 10.80 3.48 2.720 0.46 30.0 10.0 •
HCP 109-IQ 10.90 3.48 2.720 0.46 30.0 10.0 •
HCP 110-IQ 11.00 3.85 2.750 0.52 30.0 11.0 •
HCP 111-IQ 11.10 3.85 2.750 0.52 30.0 11.0 •
HCP 112-IQ 11.20 3.85 2.750 0.52 30.0 11.0 •
HCP 113-IQ 11.30 3.85 2.750 0.52 30.0 11.0 •
HCP 114-IQ 11.40 3.85 2.750 0.52 30.0 11.0 •
HCP 115-IQ 11.50 3.85 2.750 0.52 30.0 11.0 •
HCP 116-IQ 11.60 3.85 2.750 0.52 30.0 11.0 •
HCP 117-IQ 11.70 3.85 2.750 0.52 30.0 11.0 •
HCP 118-IQ 11.80 3.85 2.750 0.52 30.0 11.0 •
HCP 119-IQ 11.90 3.85 2.750 0.52 30.0 11.0 •
HCP 120-IQ 12.00 3.84 3.160 0.52 30.0 12.0 •
HCP 121-IQ 12.10 3.84 3.160 0.52 30.0 12.0 •
HCP 122-IQ 12.20 3.84 3.160 0.52 30.0 12.0 •
HCP 123-IQ 12.30 3.84 3.160 0.52 30.0 12.0 •
HCP 124-IQ 12.40 3.84 3.160 0.52 30.0 12.0 •
HCP 125-IQ 12.50 3.84 3.160 0.52 30.0 12.0 •
HCP 126-IQ 12.60 3.84 3.160 0.52 30.0 12.0 •
HCP 127-IQ 12.70 3.84 3.160 0.52 30.0 12.0 •
HCP 128-IQ 12.80 3.84 3.160 0.52 30.0 12.0 •
HCP 129-IQ 12.90 3.84 3.160 0.52 30.0 12.0 •
HCP 130-IQ 13.00 4.09 3.510 0.58 30.0 13.0 •
HCP 131-IQ 13.10 4.09 3.510 0.58 30.0 13.0 •
HCP 132-IQ 13.20 4.09 3.510 0.58 30.0 13.0 •
HCP 133-IQ 13.30 4.09 3.510 0.58 30.0 13.0 •
HCP 134-IQ 13.40 4.09 3.510 0.58 30.0 13.0 •
HCP 135-IQ 13.50 4.09 3.510 0.58 30.0 13.0 •
HCP 136-IQ 13.60 4.09 3.510 0.58 30.0 13.0 •
HCP 137-IQ 13.70 4.09 3.510 0.58 30.0 13.0 •
HCP 138-IQ 13.80 4.09 3.510 0.58 30.0 13.0 •
HCP 139-IQ 13.90 4.09 3.510 0.58 30.0 13.0 •
HCP 140-IQ 14.00 4.52 3.630 0.64 30.0 14.0 •
HCP 141-IQ 14.10 4.52 3.630 0.64 30.0 14.0 •
HCP 142-IQ 14.20 4.52 3.630 0.64 30.0 14.0 •
HCP 143-IQ 14.30 4.52 3.630 0.64 30.0 14.0 •
HCP 144-IQ 14.40 4.52 3.630 0.64 30.0 14.0 •
HCP 145-IQ 14.50 4.52 3.630 0.64 30.0 14.0 •
HCP 146-IQ 14.60 4.52 3.630 0.64 30.0 14.0 •
HCP 147-IQ 14.70 4.52 3.630 0.64 30.0 14.0 •
HCP 148-IQ 14.80 4.52 3.630 0.64 30.0 14.0 •
• Advance Self-Centering and high surface finish • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• MNC-5D (66) • MNC-7/8D (67) • DCNT (M8-M24) (136) • MNSNT (293)
