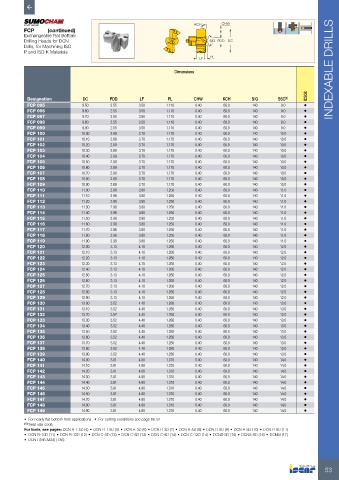

Page 55 - ISCAR(HOLE_MAKING_CATALOG_65)

KCH CHW

FCP (continued)
Exchangeable Flat Bottom
Drilling Heads for DCN SIG PDD DC
Drills, for Machining ISO
P and ISO K Materials
LF PL

Dimensions INDEXABLE DRILLS

IC908
Designation DC PDD LF PL CHW KCH SIG SSC (1)
FCP 095 9.50 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 096 9.60 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 097 9.70 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 098 9.80 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 099 9.90 2.55 3.50 1.110 0.40 60.0 140 9.0 •
FCP 100 10.00 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 101 10.10 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 102 10.20 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 103 10.30 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 104 10.40 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 105 10.50 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 106 10.60 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 107 10.70 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 108 10.80 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 109 10.90 2.89 3.70 1.170 0.40 60.0 140 10.0 •
FCP 110 11.00 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 111 11.10 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 112 11.20 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 113 11.30 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 114 11.40 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 115 11.50 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 116 11.60 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 117 11.70 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 118 11.80 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 119 11.90 2.98 3.80 1.250 0.40 60.0 140 11.0 •
FCP 120 12.00 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 121 12.10 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 122 12.20 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 123 12.30 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 124 12.40 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 125 12.50 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 126 12.60 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 127 12.70 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 128 12.80 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 129 12.90 3.13 4.10 1.260 0.40 60.0 140 12.0 •
FCP 130 13.00 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 131 13.10 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 132 13.20 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 133 13.30 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 134 13.40 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 135 13.50 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 136 13.60 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 137 13.70 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 138 13.80 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 139 13.90 3.52 4.40 1.280 0.40 60.0 140 13.0 •
FCP 140 14.00 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 141 14.10 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 142 14.20 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 143 14.30 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 144 14.40 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 145 14.50 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 146 14.60 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 147 14.70 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 148 14.80 3.81 4.80 1.310 0.40 60.0 140 14.0 •
FCP 149 14.90 3.81 4.80 1.310 0.40 60.0 140 14.0 •
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
