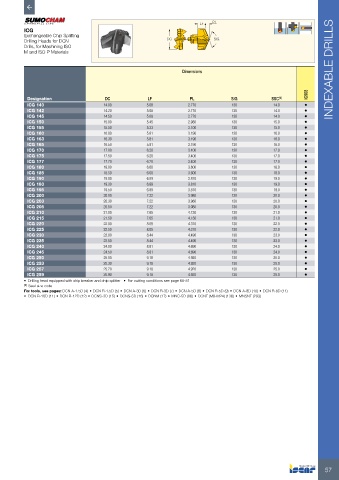

Page 59 - ISCAR(HOLE_MAKING_CATALOG_65)

LF PL

ICG
Exchangeable Chip Splitting
Drilling Heads for DCN DC SIG
Drills, for Machining ISO
M and ISO P Materials

Dimensions INDEXABLE DRILLS

IC908
Designation DC LF PL SIG SSC (1)
ICG 140 14.00 5.08 2.770 130 14.0 •
ICG 142 14.20 5.08 2.770 130 14.0 •
ICG 145 14.50 5.08 2.770 130 14.0 •
ICG 150 15.00 5.45 2.980 130 15.0 •
ICG 155 15.50 5.33 3.100 130 15.0 •
ICG 160 16.00 5.81 3.190 130 16.0 •
ICG 163 16.30 5.81 3.190 130 16.0 •
ICG 165 16.50 5.81 3.190 130 16.0 •
ICG 170 17.00 6.20 3.400 130 17.0 •
ICG 175 17.50 6.20 3.400 130 17.0 •
ICG 177 17.70 6.20 3.400 130 17.0 •
ICG 180 18.00 6.60 3.600 130 18.0 •
ICG 185 18.50 6.60 3.600 130 18.0 •
ICG 190 19.00 6.89 3.810 130 19.0 •
ICG 193 19.30 6.89 3.810 130 19.0 •
ICG 195 19.50 6.89 3.810 130 19.0 •
ICG 200 20.00 7.22 3.980 130 20.0 •
ICG 203 20.30 7.22 3.980 130 20.0 •
ICG 205 20.50 7.22 3.980 130 20.0 •
ICG 210 21.00 7.65 4.130 130 21.0 •
ICG 215 21.50 7.65 4.130 130 21.0 •
ICG 220 22.00 8.05 4.310 130 22.0 •
ICG 225 22.50 8.05 4.310 130 22.0 •
ICG 230 23.00 8.44 4.490 130 23.0 •
ICG 235 23.50 8.44 4.490 130 23.0 •
ICG 240 24.00 8.81 4.690 130 24.0 •
ICG 245 24.50 8.81 4.690 130 24.0 •
ICG 250 25.00 9.18 4.920 130 25.0 •
ICG 253 25.30 9.18 4.920 130 25.0 •
ICG 257 25.70 9.18 4.920 130 25.0 •
ICG 259 25.90 9.18 4.920 130 25.0 •
• Drilling head equipped with chip breaker and chip splitter • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17) • MNC-5D (66) • DCNT (M8-M24) (136) • MNSNT (293)

57
