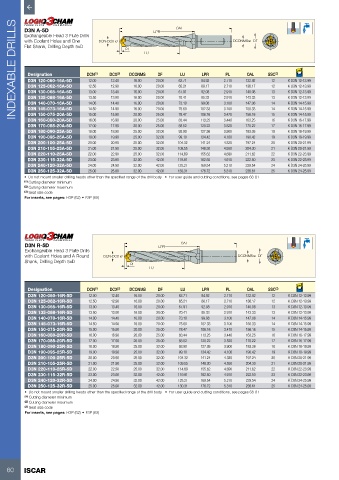

INDEXABLE DRILLS D3N A-5D DCN (1) DCN-DCX k7 (2) PL DCONMS LU LPR DF OAL LU LPR 2.710 DCONMSh6 DF SSC (3) K D3N 12-13.99

Exchangeable Head 3 Flute Drills
with Coolant Holes and One
Flat Shank, Drilling Depth 5xD

DCX
Designation
OAL
PL
D3N 120-060-16A-5D
20.00
12
62.71
84.92
132.92
12.40
12.00
16.00
D3N 125-062-16A-5D
88.17
16.00
12.50
20.00
12.90
65.21
2.710
12
136.17
K D3N 12-13.99
D3N 130-065-16A-5D
16.00
140.08
20.00
13.00
13.40
K D3N 12-13.99
13
67.91
2.910
92.08
95.33
D3N 135-068-16A-5D
14
K D3N 14-15.99
99.08
14.00
147.08
3.100
20.00
14.40
73.10
16.00
D3N 140-070-16A-5D
75.60
150.33
14.90
3.100
D3N 145-073-16A-5D
14.50
20.00
K D3N 14-15.99
16.00
14
78.47
106.16
15.90
20.00
D3N 150-075-20A-5D
156.16
15
K D3N 14-15.99
15.00
25.00
3.470
83.44
20.00
25.00
163.25
3.440
K D3N 16-17.99
16
16.00
113.25
16.90
D3N 160-080-20A-5D 13.50 13.90 16.00 20.00 70.41 102.33 2.910 143.33 13 K D3N 12-13.99
D3N 170-085-20A-5D 17.00 17.90 20.00 25.00 88.52 120.22 3.520 170.22 17 K D3N 16-17.99
D3N 180-090-25A-5D 18.00 18.90 25.00 32.00 93.90 127.36 3.900 183.36 18 K D3N 18-19.99
D3N 190-095-25A-5D 19.00 19.90 25.00 32.00 99.10 134.42 4.100 190.42 19 K D3N 18-19.99
D3N 200-100-25A-5D 20.00 20.90 25.00 32.00 104.32 141.24 4.320 197.24 20 K D3N 20-21.99
D3N 210-105-25A-5D 21.00 21.90 25.00 32.00 109.55 148.30 4.550 204.30 21 K D3N 20-21.99
D3N 220-110-25A-5D 22.00 22.90 25.00 32.00 114.69 155.62 4.690 211.62 22 K D3N 22-23.99
D3N 230-115-32A-5D 23.00 23.90 32.00 42.00 119.91 162.50 4.910 222.50 23 K D3N 22-23.99
D3N 240-120-32A-5D 24.00 24.90 32.00 42.00 125.21 169.54 5.210 229.54 24 K D3N 24-25.99
D3N 250-125-32A-5D 25.00 25.90 32.00 42.00 130.31 176.72 5.310 236.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)

OAL
D3N R-5D LPR
Exchangeable Head 3 Flute Drills
with Coolant Holes and A Round DCN-DCX k7 DCONMSh6 DF
Shank, Drilling Depth 5xD
PL
LU
Designation DCN (1) DCX (2) DCONMS DF LU LPR PL OAL SSC (3)
D3N 120-060-16R-5D 12.00 12.40 16.00 20.00 62.71 84.92 2.710 132.92 12 K D3N 12-13.99
D3N 125-062-16R-5D 12.50 12.90 16.00 20.00 65.21 88.17 2.710 136.17 12 K D3N 12-13.99
D3N 130-065-16R-5D 13.00 13.40 16.00 20.00 67.91 92.08 2.910 140.08 13 K D3N 12-13.99
D3N 135-068-16R-5D 13.50 13.90 16.00 20.00 70.41 95.33 2.910 143.33 13 K D3N 12-13.99
D3N 140-070-16R-5D 14.00 14.40 16.00 20.00 73.10 99.08 3.100 147.08 14 K D3N 14-15.99
D3N 145-073-16R-5D 14.50 14.90 16.00 20.00 75.60 102.33 3.100 150.33 14 K D3N 14-15.99
D3N 150-075-20R-5D 15.00 15.90 20.00 25.00 78.47 106.16 3.470 156.16 15 K D3N 14-15.99
D3N 160-080-20R-5D 16.00 16.90 20.00 25.00 83.44 113.25 3.440 163.25 16 K D3N 16-17.99
D3N 170-085-20R-5D 17.00 17.90 20.00 25.00 88.52 120.22 3.520 170.22 17 K D3N 16-17.99
D3N 180-090-25R-5D 18.00 18.90 25.00 32.00 93.90 127.36 3.900 183.36 18 K D3N 18-19.99
D3N 190-095-25R-5D 19.00 19.90 25.00 32.00 99.10 134.42 4.100 190.42 19 K D3N 18-19.99
D3N 200-100-25R-5D 20.00 20.90 25.00 32.00 104.32 141.24 4.320 197.24 20 K D3N 20-21.99
D3N 210-105-25R-5D 21.00 21.90 25.00 32.00 109.55 148.30 4.550 204.30 21 K D3N 20-21.99
D3N 220-110-25R-5D 22.00 22.90 25.00 32.00 114.69 155.62 4.690 211.62 22 K D3N 22-23.99
D3N 230-115-32R-5D 23.00 23.90 32.00 42.00 119.91 162.50 4.910 222.50 23 K D3N 22-23.99
D3N 240-120-32R-5D 24.00 24.90 32.00 42.00 125.21 169.54 5.210 229.54 24 K D3N 24-25.99
D3N 250-125-32R-5D 25.00 25.90 32.00 42.00 130.31 176.72 5.310 236.61 25 K D3N 24-25.99
• Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 68-81
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Seat size code
For inserts, see pages: H3P (62) • F3P (65)
