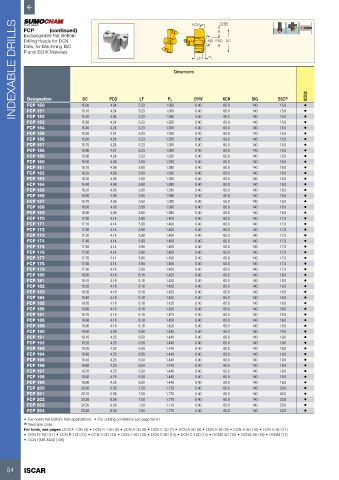

Page 56 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS FCP (continued) Dimensions KCH LF SIG PDD DC
CHW

Exchangeable Flat Bottom
Drilling Heads for DCN
Drills, for Machining ISO
P and ISO K Materials
PL

PL
Designation
DC
LF
140
60.0
0.40
4.24
15.0
FCP 150
•
FCP 151
5.23
4.24
15.10
1.350
15.0
0.40
140
60.0
•
FCP 152
5.23
60.0
140
15.20
1.350
0.40
4.24
15.0
•
FCP 153 15.00 PDD 5.23 1.350 CHW KCH SIG SSC (1) • IC908
5.23
140
4.24
60.0
0.40
15.0
1.350
15.30
FCP 154 15.40 4.24 5.23 1.350 0.40 60.0 140 15.0 •
FCP 155 15.50 4.24 5.23 1.350 0.40 60.0 140 15.0 •
FCP 156 15.60 4.24 5.23 1.350 0.40 60.0 140 15.0 •
FCP 157 15.70 4.24 5.23 1.350 0.40 60.0 140 15.0 •
FCP 158 15.80 4.24 5.23 1.350 0.40 60.0 140 15.0 •
FCP 159 15.90 4.24 5.23 1.350 0.40 60.0 140 15.0 •
FCP 160 16.00 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 161 16.10 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 162 16.20 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 163 16.30 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 164 16.40 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 165 16.50 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 166 16.60 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 167 16.70 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 168 16.80 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 169 16.90 4.06 5.60 1.390 0.40 60.0 140 16.0 •
FCP 170 17.00 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 171 17.10 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 172 17.20 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 173 17.30 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 174 17.40 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 175 17.50 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 176 17.60 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 177 17.70 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 178 17.80 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 179 17.90 4.14 5.90 1.400 0.40 60.0 140 17.0 •
FCP 180 18.00 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 181 18.10 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 182 18.20 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 183 18.30 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 184 18.40 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 185 18.50 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 186 18.60 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 187 18.70 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 188 18.80 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 189 18.90 4.16 6.18 1.420 0.40 60.0 140 18.0 •
FCP 190 19.00 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 191 19.10 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 192 19.20 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 193 19.30 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 194 19.40 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 195 19.50 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 196 19.60 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 197 19.70 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 198 19.80 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 199 19.90 4.25 6.50 1.440 0.40 60.0 140 19.0 •
FCP 200 20.00 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 201 20.10 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 202 20.20 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 203 20.30 6.56 7.50 1.770 0.40 60.0 140 20.0 •
FCP 204 20.40 6.56 7.50 1.770 0.40 60.0 140 20.0 •
• For nearly flat bottom hole applications • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)
