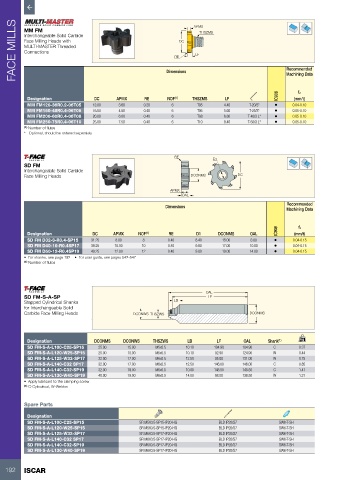

Page 194 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS MM FM Dimensions APMX Recommended

THSZMS
Interchangeable Solid Carbide
Face Milling Heads with
DC
MULTI-MASTER Threaded
Connections
LF
RE

fz
IC908 Machining Data
Designation DC APMX RE NOF (1) THSZMS LF (mm/t)
MM FM120-36R0.2-06T05 12.00 3.60 0.20 6 T05 4.40 T-20/3* • 0.04-0.10
MM FM160-48R0.4-06T06 16.00 4.80 0.40 6 T06 5.60 T-25/3* • 0.05-0.10
MM FM200-60R0.4-06T08 20.00 6.00 0.40 6 T08 6.80 T-40/3 L* • 0.05-0.10
MM FM250-75R0.4-06T10 25.00 7.50 0.40 6 T10 8.40 T-50/3 L* • 0.05-0.10
(1) Number of flutes
* Optional, should be ordered separately

RE
D1

SD FM
Interchangeable Solid Carbide
Face Milling Heads DCONMS DC
APMX
OAL

Dimensions Recommended
Machining Data

IC908 fz
Designation DC APMX NOF (1) RE D1 DCONMS OAL (mm/t)
SD FM D32-8-R0.4-SP15 31.25 8.00 8 0.40 8.40 15.00 8.00 • 0.04-0.15
SD FM D40-10-R0.4SP17 39.25 10.00 10 0.40 9.80 17.00 10.00 • 0.04-0.15
SD FM D50-12-R0.4SP19 49.25 12.00 12 0.40 9.80 19.00 14.00 • 0.04-0.15
• For shanks, see page 192 • For user guide, see pages 542-547
(1) Number of flutes

OAL

SD FM-S-A-SP LF
Stepped Cylindrical Shanks LB
for Interchangeable Solid
Carbide Face Milling Heads DCONWS THSZWS DCONMS

Designation DCONMS DCONWS THSZWS LB LF OAL Shank (1) kg
SD FM-S-A-L100-C25-SP15 25.00 15.00 M5x0.5 10.10 104.90 104.90 C 0.37
SD FM-S-A-L120-W25-SP15 25.00 15.00 M5x0.5 10.10 92.90 124.90 W 0.44
SD FM-S-A-L125-W32-SP17 32.00 17.00 M6x0.5 12.50 95.00 131.00 W 0.75
SD FM-S-A-L140-C32 SP17 32.00 17.00 M6x0.5 12.50 146.00 146.00 C 0.85
SD FM-S-A-L140-C32-SP19 32.00 19.00 M6x0.5 10.00 148.50 148.50 C 1.41
SD FM-S-A-L130-W40-SP19 40.00 19.00 M6x0.5 14.00 98.50 138.50 W 1.21
• Apply lubricant to the clamping screw
(1) C-Cylindrical, W-Weldon

Spare Parts

Designation
SD FM-S-A-L100-C25-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH
SD FM-S-A-L120-W25-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH
SD FM-S-A-L125-W32-SP17 SR M6X0.5-SP17-IP20-HG BLD IP20/S7 SW6-T-SH
SD FM-S-A-L140-C32 SP17 SR M6X0.5-SP17-IP20-HG BLD IP20/S7 SW6-T-SH
SD FM-S-A-L140-C32-SP19 SR M6X0.5-SP17-IP20-HG BLD IP20/S7 SW6-T-SH
SD FM-S-A-L130-W40-SP19 SR M6X0.5-SP17-IP20-HG BLD IP20/S7 SW6-T-SH

192 ISCAR
