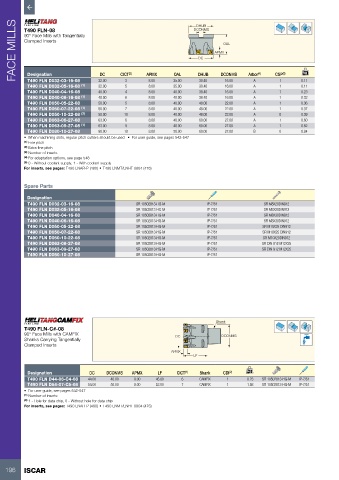

Page 198 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS T490 FLN-08 DCONMS APMX OAL
DHUB
90° Face Mills with Tangentially
Clamped Inserts

DC

kg
Designation
DC
T490 FLN D032-03-16-08
16.00
1
30.40
A
3
35.00
8.00
T490 FLN D032-05-16-08 (1) 32.00 CICT (3) APMX OAL DHUB DCONMS Arbor (4) CSP (5) 0.11
35.00
8.00
30.40
0.11
5
32.00
A
16.00
1
T490 FLN D040-04-16-08 40.00 4 8.00 40.00 38.40 16.00 A 1 0.23
T490 FLN D040-06-16-08 (1) 40.00 6 8.00 40.00 38.40 16.00 A 1 0.32
T490 FLN D050-05-22-08 50.00 5 8.00 40.00 48.00 22.00 A 1 0.36
T490 FLN D050-07-22-08 (1) 50.00 7 8.00 40.00 48.00 22.00 A 1 0.37
T490 FLN D050-10-22-08 (2) 50.00 10 8.00 40.00 48.00 22.00 A 0 0.39
T490 FLN D063-06-27-08 63.00 6 8.00 40.00 60.00 27.00 A 1 0.60
T490 FLN D063-09-27-08 (1) 63.00 9 8.00 40.00 60.00 27.00 A 1 0.62
T490 FLN D080-10-27-08 80.00 10 8.00 50.00 60.00 27.00 B 0 0.84
• When machining slots, regular pitch cutters should be used • For user guide, see pages 542-547
(1) Fine pitch
(2) Extra fine pitch
(3) Number of inserts
(4) For adaptation options, see page 548
(5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
Spare Parts
Designation
T490 FLN D032-03-16-08 SR 10502813-HG-M IP-7/51 SR M8X20DIN912
T490 FLN D032-05-16-08 SR 10502813-HG-M IP-7/51 SR M8X20DIN912
T490 FLN D040-04-16-08 SR 10502813-HG-M IP-7/51 SR M8X30DIN912
T490 FLN D040-06-16-08 SR 10502813-HG-M IP-7/51 SR M8X30DIN912
T490 FLN D050-05-22-08 SR 10502813-HG-M IP-7/51 SR M10X25 DIN912
T490 FLN D050-07-22-08 SR 10502813-HG-M IP-7/51 SR M10X25 DIN912
T490 FLN D050-10-22-08 SR 10502813-HG-M IP-7/51 SR M10X20DIN912
T490 FLN D063-06-27-08 SR 10502813-HG-M IP-7/51 SR DIN 912 M12X25
T490 FLN D063-09-27-08 SR 10502813-HG-M IP-7/51 SR DIN 912 M12X25
T490 FLN D080-10-27-08 SR 10502813-HG-M IP-7/51

Shank

T490 FLN-C#-08
90° Face Mills with CAMFIX DC DCONMS
Shanks Carrying Tangentially
Clamped Inserts
APMX
LF

Designation DC DCONMS APMX LF CICT (1) Shank CDI (2) kg
T490 FLN D44-06-C4-08 44.00 40.00 8.00 45.00 6 CAMFIX 1 0.23 SR 10502813-HG-M IP-7/51
T490 FLN D54-07-C5-08 54.00 50.00 8.00 52.00 7 CAMFIX 1 1.58 SR 10502813-HG-M IP-7/51
• For user guide, see pages 542-547
(1) Number of inserts
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476)
