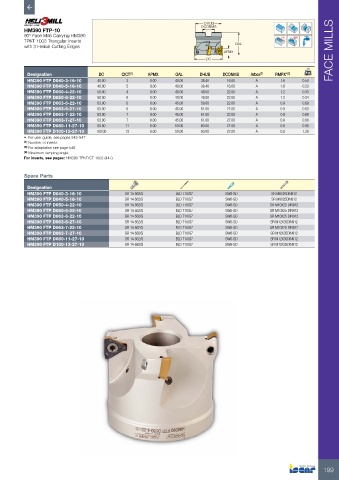

Page 201 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS

HM390 FTP-10
90° Face Mills Carrying HM390 Rd°
TPKT 1003 Triangular Inserts OAL
with 3 Helical Cutting Edges
APMX FACE MILLS
DC

Designation DC CICT (1) APMX OAL DHUB DCONMS Arbor (2) RMPX° (3) kg
HM390 FTP D040-3-16-10 40.00 3 8.00 40.00 38.40 16.00 A 1.6 0.50
HM390 FTP D040-5-16-10 40.00 5 8.00 40.00 38.40 16.00 A 1.6 0.23
HM390 FTP D050-4-22-10 50.00 4 8.00 40.00 48.00 22.00 A 1.2 0.33
HM390 FTP D050-6-22-10 50.00 6 8.00 40.00 48.00 22.00 A 1.2 0.34
HM390 FTP D063-6-22-10 63.00 6 8.00 45.00 59.00 22.00 A 0.9 0.69
HM390 FTP D063-6-27-10 63.00 6 8.00 45.00 61.00 27.00 A 0.9 0.63
HM390 FTP D063-7-22-10 63.00 7 8.00 45.00 61.00 22.00 A 0.9 0.69
HM390 FTP D063-7-27-10 63.00 7 8.00 45.00 61.00 27.00 A 0.9 0.68
HM390 FTP D080-11-27-10 80.00 11 8.00 50.00 60.00 27.00 A 0.8 0.98
HM390 FTP D100-13-27-10 100.00 13 8.00 50.00 60.00 27.00 A 0.8 1.38
• For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation see page 548
(3) Maximum ramping angle
For inserts, see pages: HM390 TPKT/CT 1003 (447)

Spare Parts
Designation
HM390 FTP D040-3-16-10 SR 14-562/S BLD T10/S7 SW6-SD SR M8X25DIN912
HM390 FTP D040-5-16-10 SR 14-562/S BLD T10/S7 SW6-SD SR M8X25DIN912
HM390 FTP D050-4-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912
HM390 FTP D050-6-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912
HM390 FTP D063-6-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912
HM390 FTP D063-6-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912
HM390 FTP D063-7-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912
HM390 FTP D063-7-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912
HM390 FTP D080-11-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912
HM390 FTP D100-13-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912

199
