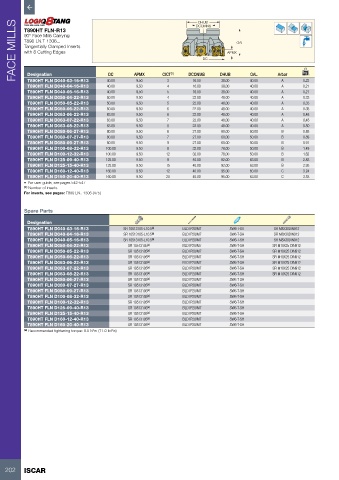

Page 204 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS T890HT FLN-R13 DCOMNS APMX OAL
DHUB
90° Face Mills Carrying
T890 LN.T 1306...
Tangentially Clamped Inserts
with 8 Cutting Edges
DC

kg
Designation
DC
OAL
T890HT FLN D040-03-16-R13
A
9.50
3
38.00
16.00
T890HT FLN D040-04-16-R13 40.00 APMX CICT (1) DCONMS DHUB 40.00 Arbor 0.22
40.00
4
0.21
38.00
9.50
16.00
40.00
A
T890HT FLN D040-05-16-R13 40.00 9.50 5 16.00 38.00 40.00 A 0.21
T890HT FLN D050-04-22-R13 50.00 9.50 4 22.00 48.00 40.00 A 0.33
T890HT FLN D050-05-22-R13 50.00 9.50 5 22.00 48.00 40.00 A 0.33
T890HT FLN D050-06-22-R13 50.00 9.50 6 22.00 48.00 40.00 A 0.35
T890HT FLN D063-06-22-R13 63.00 9.50 6 22.00 48.00 40.00 A 0.48
T890HT FLN D063-07-22-R13 63.00 9.50 7 22.00 48.00 40.00 A 0.48
T890HT FLN D063-08-22-R13 63.00 9.50 8 22.00 48.00 40.00 A 0.50
T890HT FLN D080-06-27-R13 80.00 9.50 6 27.00 60.00 50.00 B 0.88
T890HT FLN D080-07-27-R13 80.00 9.50 7 27.00 60.00 50.00 B 0.89
T890HT FLN D080-09-27-R13 80.00 9.50 9 27.00 60.00 50.00 B 0.91
T890HT FLN D100-08-32-R13 100.00 9.50 8 32.00 78.00 50.00 B 1.49
T890HT FLN D100-12-32-R13 100.00 9.50 12 32.00 78.00 50.00 B 1.62
T890HT FLN D125-09-40-R13 125.00 9.50 9 40.00 92.00 63.00 B 2.83
T890HT FLN D125-15-40-R13 125.00 9.50 15 40.00 92.00 63.00 B 2.93
T890HT FLN D160-12-40-R13 160.00 9.50 12 40.00 95.00 63.00 C 3.24
T890HT FLN D160-20-40-R13 160.00 9.50 20 40.00 95.00 63.00 C 3.53
• For user guide, see pages 542-547
(1) Number of inserts
For inserts, see pages: T890 LN.. 1306 (475)
Spare Parts
Designation
T890HT FLN D040-03-16-R13 SR 10513105-L10.5 (a) BLD IP20/M7 SW6-T-SH SR M8X30DIN912
T890HT FLN D040-04-16-R13 SR 10513105-L10.5 (a) BLD IP20/M7 SW6-T-SH SR M8X30DIN912
T890HT FLN D040-05-16-R13 SR 10513105-L10.5 (a) BLD IP20/M7 SW6-T-SH SR M8X30DIN912
T890HT FLN D050-04-22-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH SR M10X25 DIN912
T890HT FLN D050-05-22-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH SR M10X25 DIN912
T890HT FLN D050-06-22-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH SR M10X25 DIN912
T890HT FLN D063-06-22-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH SR M10X25 DIN912
T890HT FLN D063-07-22-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH SR M10X25 DIN912
T890HT FLN D063-08-22-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH SR M10X25 DIN912
T890HT FLN D080-06-27-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D080-07-27-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D080-09-27-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D100-08-32-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D100-12-32-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D125-09-40-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D125-15-40-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D160-12-40-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
T890HT FLN D160-20-40-R13 SR 10513105 (a) BLD IP20/M7 SW6-T-SH
(a) Recommended tightening torque: 8.0 N*m (71.0 lbf*in)
