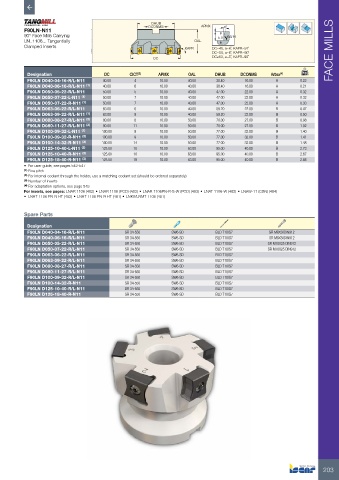

Page 205 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS a°
APMX
F90LN-N11
90° Face Mills Carrying 5.0 KAPR
LN..1106... Tangentially OAL
Clamped Inserts KAPR DC=40, a=6˚, KAPR=91˚
DC=50, a=6˚, KAPR=90˚ FACE MILLS
DC DC≥63, a=5˚, KAPR=90˚

Designation DC CICT (3) APMX OAL DHUB DCONMS Arbor (4) kg
F90LN D040-04-16-R/L-N11 40.00 4 10.00 40.00 38.40 16.00 A 0.22
F90LN D040-06-16-R/L-N11 (1) 40.00 6 10.00 40.00 38.40 16.00 A 0.21
F90LN D050-05-22-R/L-N11 50.00 5 10.00 40.00 47.00 22.00 A 0.32
F90LN D050-07-22-L-N11 (1) 50.00 7 10.00 40.00 47.00 22.00 A 0.32
F90LN D050-07-22-R-N11 (1) 50.00 7 10.00 40.00 47.00 22.00 A 0.33
F90LN D063-06-22-R/L-N11 63.00 6 10.00 40.00 59.20 22.00 B 0.47
F90LN D063-09-22-R/L-N11 (1) 63.00 9 10.00 40.00 59.20 22.00 B 0.50
F90LN D080-08-27-R/L-N11 (2) 80.00 8 10.00 50.00 70.00 27.00 B 0.98
F90LN D080-11-27-R/L-N11 (2) 80.00 11 10.00 50.00 70.00 27.00 B 1.02
F90LN D100-09-32-L-N11 (2) 100.00 9 10.00 50.00 77.00 32.00 B 1.40
F90LN D100-09-32-R-N11 (2) 100.00 9 10.00 50.00 77.00 32.00 B 1.41
F90LN D100-14-32-R-N11 (2) 100.00 14 10.00 50.00 77.00 32.00 B 1.48
F90LN D125-10-40-L-N11 (2) 125.00 10 10.00 63.00 95.00 40.00 B 2.73
F90LN D125-10-40-R-N11 (2) 125.00 10 10.00 63.00 95.00 40.00 B 2.67
F90LN D125-18-40-R-N11 (2) 125.00 18 10.00 63.00 95.00 40.00 B 2.88
• For user guide, see pages 542-547
(1) Fine pitch
(2) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(3) Number of inserts
(4) For adaptation options, see page 548
For inserts, see pages: LNAR 1106 (482) • LNAR 1106 (PCD) (483) • LNAR 1106PN-R-S-W (PCD) (483) • LNAT 1106-W (482) • LNAW-11 (CBN) (484)
• LNHT 1106 PN-N HT (482) • LNHT 1106 PN-R HT (481) • LNKX/LNMT 1106 (481)

Spare Parts

Designation
F90LN D040-04-16-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M8X30DIN912
F90LN D040-06-16-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M8X30DIN912
F90LN D050-05-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M10X25 DIN912
F90LN D050-07-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M10X25 DIN912
F90LN D063-06-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D063-09-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D080-08-27-R/L-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D080-11-27-R/L-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D100-09-32-R/L-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D100-14-32-R-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D125-10-40-R/L-N11 SR 34-550 SW6-SD BLD T10/S7
F90LN D125-18-40-R-N11 SR 34-550 SW6-SD BLD T10/S7

203
