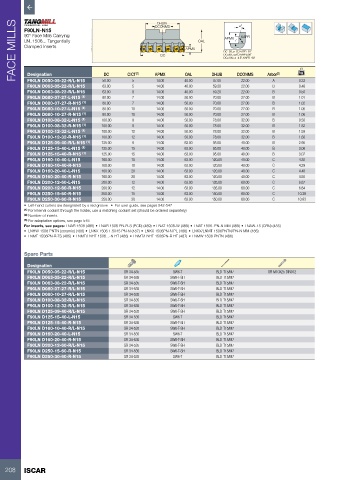

Page 210 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS F90LN-N15 DCONMS APMX OAL DC=50, a=8˚, KAPR=91˚
DHUB
a°
90° Face Mills Carrying
KAPR
APMX
7
LN..1506... Tangentially
Clamped Inserts
DC
DC=63, a=6˚, KAPR=90˚
DC≥100, a=4.5˚, KAPR=90˚
Designation
DC
OAL
F90LN D050-05-22-R/L-N15
47.00
14.00
0.33
A
22.00
5
F90LN D063-05-22-R/L-N15 50.00 CICT (2) APMX 40.00 DHUB DCONMS Arbor (3) kg
14.00
B
40.00
0.48
63.00
59.20
5
22.00
F90LN D063-08-22-R/L-N15 63.00 8 14.00 40.00 59.20 22.00 B 0.50
F90LN D080-07-27-L-N15 (1) 80.00 7 14.00 50.00 70.00 27.00 B 1.01
F90LN D080-07-27-R-N15 (1) 80.00 7 14.00 50.00 70.00 27.00 B 1.02
F90LN D080-10-27-L-N15 (1) 80.00 10 14.00 50.00 70.00 27.00 B 1.05
F90LN D080-10-27-R-N15 (1) 80.00 10 14.00 50.00 70.00 27.00 B 1.06
F90LN D100-08-32-L-N15 (1) 100.00 8 14.00 50.00 78.00 32.00 B 0.50
F90LN D100-08-32-R-N15 (1) 100.00 8 14.00 50.00 78.00 32.00 B 1.52
F90LN D100-12-32-L-N15 (1) 100.00 12 14.00 50.00 78.00 32.00 B 1.59
F90LN D100-12-32-R-N15 (1) 100.00 12 14.00 50.00 78.00 32.00 B 1.60
F90LN D125-09-40-R/L-N15 (1) 125.00 9 14.00 63.00 95.00 40.00 B 2.95
F90LN D125-15-40-L-N15 (1) 125.00 15 14.00 63.00 95.00 40.00 B 3.06
F90LN D125-15-40-R-N15 (1) 125.00 15 14.00 63.00 95.00 40.00 B 3.07
F90LN D160-10-40-L-N15 160.00 10 14.00 63.00 120.00 40.00 C 4.30
F90LN D160-10-40-R-N15 160.00 10 14.00 63.00 120.00 40.00 C 4.29
F90LN D160-20-40-L-N15 160.00 20 14.00 63.00 120.00 40.00 C 4.48
F90LN D160-20-40-R-N15 160.00 20 14.00 63.00 120.00 40.00 C 4.50
F90LN D200-12-60-L-N15 200.00 12 14.00 63.00 135.00 60.00 C 6.67
F90LN D200-12-60-R-N15 200.00 12 14.00 63.00 135.00 60.00 C 6.64
F90LN D250-15-60-R-N15 250.00 15 14.00 63.00 150.00 60.00 C 10.39
F90LN D250-30-60-R-N15 250.00 30 14.00 63.00 150.00 60.00 C 10.83
• Left-hand cutters are designated by a red groove • For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Number of inserts
(3) For adaptation options, see page 548
For inserts, see pages: LNAR 1506 (488) • LNAR 1506 PN-R-S (PCD) (489) • LNAT 1506-W (489) • LNAT 1506..PN-N MM (489) • LNAW-15 (CBN) (485)
• LNHW 1506 PNTN (ceramic) (488) • LNKX 1506 1.5X45 PN-N (487) • LNKX 1506PN-N PL (486) • LNKX/LNMT 1506PNTN/PN-N MM (486)
• LNMT 1506PN-R-TS (485) • LNMT/LNHT 1506...-N HT (488) • LNMT/LNHT 1506PN-R HT (487) • LNMW 1506 PNTN (486)
Spare Parts
Designation
F90LN D050-05-22-R/L-N15 SR 34-535 SW6-T BLD T15/M7 SR M10X25 DIN912
F90LN D063-05-22-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D063-08-22-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D080-07-27-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D080-10-27-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D100-08-32-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D100-12-32-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D125-09-40-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D125-15-40-L-N15 SR 34-535 SW6-T BLD T15/M7
F90LN D125-15-40-R-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D160-10-40-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D160-20-40-L-N15 SR 34-535 SW6-T BLD T15/M7
F90LN D160-20-40-R-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D200-12-60-R/L-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D250-15-60-R-N15 SR 34-535 SW6-T-SH BLD T15/M7
F90LN D250-30-60-R-N15 SR 34-535 SW6-T BLD T15/M7

208 ISCAR
