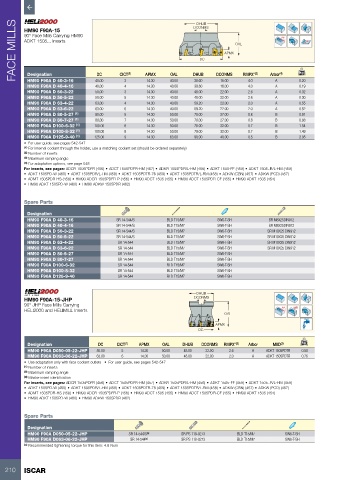

Page 212 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS HM90 F90A-15 DCONMS APMX OAL Rd°
DHUB
90° Face Mills Carrying HM90
ADKT 1505... Inserts

DC

Designation
DC
HM90 F90A D 40-3-16
0.20
A
16.00
4.0
38.60
40.00
14.30
3
HM90 F90A D 40-4-16 40.00 CICT (2) APMX OAL DHUB DCONMS RMPX° (3) Arbor (4) kg
14.30
40.00
38.60
40.00
4
0.19
A
4.0
16.00
HM90 F90A D 50-3-22 50.00 3 14.30 40.00 48.00 22.00 2.6 A 0.32
HM90 F90A D 50-5-22 50.00 5 14.30 40.00 48.00 22.00 2.6 A 0.30
HM90 F90A D 63-4-22 63.00 4 14.30 40.00 59.20 22.00 2.0 A 0.55
HM90 F90A D 63-6-22 63.00 6 14.30 40.00 59.20 22.00 2.0 A 0.52
HM90 F90A D 80-5-27 (1) 80.00 5 14.30 50.00 70.00 27.00 0.8 B 0.91
HM90 F90A D 80-7-27 (1) 80.00 7 14.30 50.00 70.00 27.00 0.8 B 0.88
HM90 F90A D100-6-32 (1) 100.00 6 14.30 50.00 78.00 32.00 0.7 B 1.54
HM90 F90A D100-8-32 (1) 100.00 8 14.30 50.00 78.00 32.00 0.7 B 1.49
HM90 F90A D125-9-40 (1) 125.00 9 14.30 63.00 90.00 40.00 0.5 B 2.95
• For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Number of inserts
(3) Maximum ramping angle
(4) For adaptation options, see page 548
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)
Spare Parts
Designation
HM90 F90A D 40-3-16 SR 14-544/S BLD T15/M7 SW6-T-SH SR M8X25DIN912
HM90 F90A D 40-4-16 SR 14-544/S BLD T15/M7 SW6-T-SH SR M8X25DIN912
HM90 F90A D 50-3-22 SR 14-544/S BLD T15/M7 SW6-T-SH SR M10X25 DIN912
HM90 F90A D 50-5-22 SR 14-544/S BLD T15/M7 SW6-T-SH SR M10X25 DIN912
HM90 F90A D 63-4-22 SR 14-544 BLD T15/M7 SW6-T-SH SR M10X25 DIN912
HM90 F90A D 63-6-22 SR 14-544 BLD T15/M7 SW6-T-SH SR M10X25 DIN912
HM90 F90A D 80-5-27 SR 14-544 BLD T15/M7 SW6-T-SH
HM90 F90A D 80-7-27 SR 14-544 BLD T15/M7 SW6-T-SH
HM90 F90A D100-6-32 SR 14-544 BLD T15/M7 SW6-T-SH
HM90 F90A D100-8-32 SR 14-544 BLD T15/M7 SW6-T-SH
HM90 F90A D125-9-40 SR 14-544 BLD T15/M7 SW6-T-SH
DHUB
HM90 F90A-15-JHP DCONMS
90° JHP Face Mills Carrying
HELI2000 and HELIMILL Inserts Rd°
OAL
APMX
DC
Designation DC CICT (1) APMX OAL DHUB DCONMS RMPX° (2) Arbor MIID (3) kg
HM90 F90A D050-05-22-JHP 50.00 5 14.30 50.00 48.00 22.00 2.6 A ADKT 1505PDTR 0.50
HM90 F90A D063-06-22-JHP 63.00 6 14.30 50.00 48.00 22.00 2.0 A ADKT 1505PDTR 0.76
• Use adaptation only with face coolant outlets • For user guide, see pages 542-547
(1) Number of inserts
(2) Maximum ramping angle
(3) Master insert identification
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459)
• ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADKW (CBN) (457) • ADKW (PCD) (457)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)

Spare Parts

Designation
HM90 F90A D050-05-22-JHP SR 14-544/S (a) SR PS 118-0273 BLD T15/M7 SW6-T-SH
HM90 F90A D063-06-22-JHP SR 14-544 (a) SR PS 118-0273 BLD T15/M7 SW6-T-SH
(a) Recommended tightening torque for this item: 4.8 Nxm
