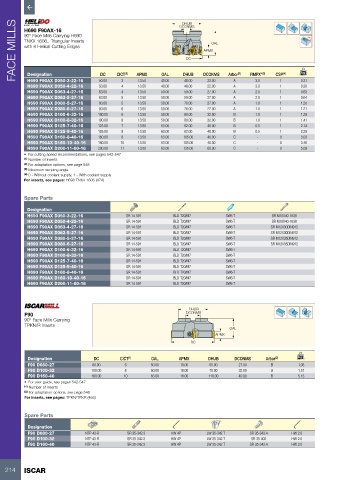

FACE MILLS H690 F90AX-16 DCONMS APMX OAL Rd°
DHUB

90° Face Mills Carrying H690
TNKX 1606.. Triangular Inserts
with 6 Helical Cutting Edges
DC

kg
Designation
OAL
DC
H690 F90AX D050-3-22-16
A
3.0
48.00
22.00
1
3
13.50
H690 F90AX D050-4-22-16 50.00 CICT (1) APMX 40.00 DHUB DCONMS Arbor (2) RMPX° (3) CSP (4) 0.31
48.00
A
40.00
3.0
13.50
0.30
1
22.00
50.00
4
H690 F90AX D063-4-27-16 63.00 4 13.50 50.00 59.00 27.00 A 2.0 1 0.63
H690 F90AX D063-5-27-16 63.00 5 13.50 50.00 59.00 27.00 A 2.0 1 0.64
H690 F90AX D080-5-27-16 80.00 5 13.50 50.00 76.00 27.00 A 1.0 1 1.20
H690 F90AX D080-6-27-16 80.00 6 13.50 50.00 76.00 27.00 A 1.0 1 1.21
H690 F90AX D100-6-32-16 100.00 6 13.50 50.00 80.00 32.00 B 1.0 1 1.29
H690 F90AX D100-8-32-16 100.00 8 13.50 50.00 80.00 32.00 B 1.0 1 1.41
H690 F90AX D125-7-40-16 125.00 7 13.50 63.00 82.00 40.00 B 0.5 1 2.14
H690 F90AX D125-9-40-16 125.00 9 13.50 63.00 82.00 40.00 B 0.5 1 2.29
H690 F90AX D160-8-40-16 160.00 8 13.50 63.00 105.00 40.00 C - 0 3.03
H690 F90AX D160-10-40-16 160.00 10 13.50 63.00 105.00 40.00 C - 0 3.46
H690 F90AX D200-11-60-16 200.00 11 13.50 63.00 135.00 60.00 C - 0 5.09
• For cutting speed recommendations, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum ramping angle
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: H690 TNKX 1606 (474)
Spare Parts
Designation
H690 F90AX D050-3-22-16 SR 14-591 BLD T20/M7 SW6-T SR M10X40-1638
H690 F90AX D050-4-22-16 SR 14-591 BLD T20/M7 SW6-T SR M10X40-1638
H690 F90AX D063-4-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912
H690 F90AX D063-5-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912
H690 F90AX D080-5-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X35DIN912
H690 F90AX D080-6-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X35DIN912
H690 F90AX D100-6-32-16 SR 14-591 BLD T20/M7 SW6-T
H690 F90AX D100-8-32-16 SR 14-591 BLD T20/M7 SW6-T
H690 F90AX D125-7-40-16 SR 14-591 BLD T20/M7 SW6-T
H690 F90AX D125-9-40-16 SR 14-591 BLD T20/M7 SW6-T
H690 F90AX D160-8-40-16 SR 14-591 BLD T20/M7 SW6-T
H690 F90AX D160-10-40-16 SR 14-591 BLD T20/M7 SW6-T
H690 F90AX D200-11-60-16 SR 14-591 BLD T20/M7 SW6-T
DHUB

F90 DCONMS
90° Face Mills Carrying
TPKN/R Inserts
OAL
APMX
DC
Designation DC CICT (1) OAL APMX DHUB DCONMS Arbor (2) kg
F90 D080-27 80.00 6 50.00 18.00 55.00 27.00 B 1.05
F90 D100-32 100.00 8 50.00 18.00 70.00 32.00 B 1.57
F90 D160-40 160.00 10 63.00 18.00 110.00 40.00 B 5.13
• For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
For inserts, see pages: TPKN/TPKR (468)

Spare Parts

Designation
F90 D080-27 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-343.4 HW 2.0
F90 D100-32 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-403 HW 2.0
F90 D160-40 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-343.4 HW 2.0
