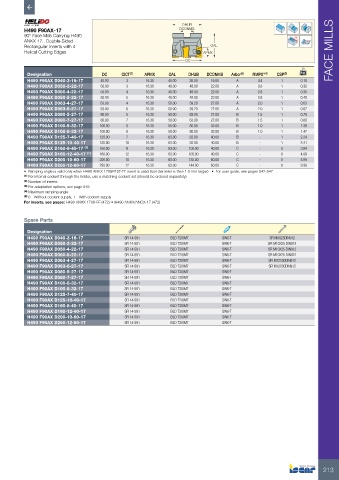

Page 215 - ISCAR(MILLINGCATALOG 38_2021)

DHUB

H490 F90AX-17 DCONMS
90° Face Mills Carrying H490 Rd°
ANKX 17.. Double-Sided
Rectangular Inserts with 4 OAL
Helical Cutting Edges APMX FACE MILLS
DC

Designation DC CICT (2) APMX OAL DHUB DCONMS Arbor (3) RMPX° (4) CSP (5) kg
H490 F90AX D040-3-16-17 40.00 3 16.30 40.00 36.00 16.00 A 4.4 1 0.18
H490 F90AX D050-3-22-17 50.00 3 16.30 40.00 48.00 22.00 A 3.8 1 0.32
H490 F90AX D050-4-22-17 50.00 4 16.30 40.00 48.00 22.00 A 3.8 1 0.30
H490 F90AX D050-5-22-17 50.00 5 16.30 40.00 48.00 22.00 A 3.8 1 0.48
H490 F90AX D063-4-27-17 63.00 4 16.30 50.00 59.20 27.00 A 2.0 1 0.63
H490 F90AX D063-6-27-17 63.00 6 16.30 50.00 59.20 27.00 A 2.0 1 0.67
H490 F90AX D080-5-27-17 80.00 5 16.30 50.00 63.00 27.00 B 1.5 1 0.79
H490 F90AX D080-7-27-17 80.00 7 16.30 50.00 63.00 27.00 B 1.5 1 0.80
H490 F90AX D100-5-32-17 100.00 5 16.30 50.00 80.00 32.00 B 1.0 1 1.39
H490 F90AX D100-8-32-17 100.00 8 16.30 50.00 80.00 32.00 B 1.0 1 1.47
H490 F90AX D125-7-40-17 125.00 7 16.30 63.00 82.00 40.00 B - 1 2.24
H490 F90AX D125-10-40-17 125.00 10 16.30 63.00 82.00 40.00 B - 1 5.41
H490 F90AX D160-8-40-17 (1) 160.00 8 16.30 63.00 105.00 40.00 C - 0 3.64
H490 F90AX D160-12-40-17 (1) 160.00 12 16.30 63.00 105.00 40.00 C - 0 4.09
H490 F90AX D200-10-60-17 200.00 10 16.30 63.00 135.00 60.00 C - 0 5.99
H490 F90AX D250-12-60-17 250.00 12 16.30 63.00 144.00 60.00 C - 0 9.36
• Ramping angle is valid only when H490 ANKX 1706R15T-FF insert is used (tool diameter is then 1.5 mm larger) • For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Number of inserts
(3) For adaptation options, see page 548
(4) Maximum ramping angle
(5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: H490 ANKX 1706-FF (472) • H490 ANKX/ANCX-17 (472)

Spare Parts
Designation
H490 F90AX D040-3-16-17 SR 14-591 BLD T20/M7 SW6-T SR M8X25DIN912
H490 F90AX D050-3-22-17 SR 14-591 BLD T20/M7 SW6-T SR M10X25 DIN912
H490 F90AX D050-4-22-17 SR 14-591 BLD T20/M7 SW6-T SR M10X25 DIN912
H490 F90AX D050-5-22-17 SR 14-591 BLD T20/M7 SW6-T SR M10X25 DIN912
H490 F90AX D063-4-27-17 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912
H490 F90AX D063-6-27-17 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912
H490 F90AX D080-5-27-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D080-7-27-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D100-5-32-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D100-8-32-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D125-7-40-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D125-10-40-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D160-8-40-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D160-12-40-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D200-10-60-17 SR 14-591 BLD T20/M7 SW6-T
H490 F90AX D250-12-60-17 SR 14-591 BLD T20/M7 SW6-T
