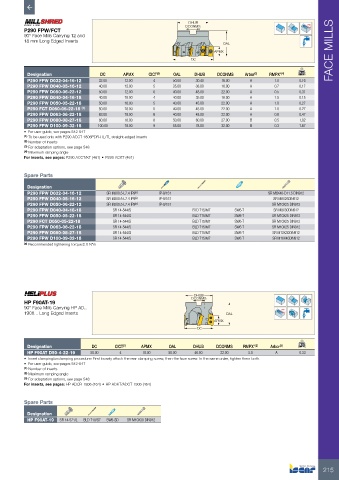

Page 217 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS Rd°
P290 FPW/FCT
90° Face Mills Carrying 12 and
18 mm Long Edged Inserts
OAL
APMX FACE MILLS
DC

Designation DC APMX CICT (2) OAL DHUB DCONMS Arbor (3) RMPX° (4) kg
P290 FPW D032-04-16-12 32.00 12.00 4 50.00 30.40 16.00 A 1.0 0.16
P290 FPW D040-05-16-12 40.00 12.00 5 35.00 38.00 16.00 A 0.7 0.17
P290 FPW D050-06-22-12 50.00 12.00 6 40.00 48.00 22.00 A 0.5 0.31
P290 FPW D040-04-16-18 40.00 18.00 4 40.00 35.00 16.00 A 1.5 0.15
P290 FPW D050-05-22-18 50.00 18.00 5 40.00 45.00 22.00 A 1.0 0.27
P290 FCT D050-05-22-18 (1) 50.00 18.00 5 40.00 45.00 22.00 A 1.0 0.27
P290 FPW D063-06-22-18 63.00 18.00 6 40.00 48.00 22.00 A 0.8 0.47
P290 FPW D080-08-27-18 80.00 18.00 8 50.00 60.00 27.00 B 0.5 1.02
P290 FPW D100-09-32-18 100.00 18.00 9 55.00 78.00 32.00 B 0.3 1.87
• For user guide, see pages 542-547
(1) To be used only with P290 ACCT 1806PDR-HL/TL straight-edged inserts
(2) Number of inserts
(3) For adaptation options, see page 548
(4) Maximum ramping angle
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)

Spare Parts
Designation
P290 FPW D032-04-16-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M8X40-D11.5 DIN912
P290 FPW D040-05-16-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M8X25DIN912
P290 FPW D050-06-22-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M10X25 DIN912
P290 FPW D040-04-16-18 SR 14-544/S BLD T15/M7 SW6-T SR M8X30DIN912
P290 FPW D050-05-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X25 DIN912
P290 FCT D050-05-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X25 DIN912
P290 FPW D063-06-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X25 DIN912
P290 FPW D080-08-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X30DIN912
P290 FPW D100-09-32-18 SR 14-544/S BLD T15/M7 SW6-T SR M16X40DIN912
(a) Recommended tightening torque:2.0 N*m

DHUB
DCONMS

HP F90AT-19
90° Face Mills Carrying HP AD.. Rd°
1906... Long Edged Inserts OAL
APMX
DC

Designation DC CICT (1) APMX OAL DHUB DCONMS RMPX° (2) Arbor (3) kg
HP F90AT D50-4-22-19 50.00 4 18.00 50.00 46.50 22.00 5.0 A 0.33
• Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both.
• For user guide, see pages 542-547
(1) Number of inserts
(2) Maximum ramping angle
(3) For adaptation options, see page 548
For inserts, see pages: HP ADCR 1906 (464) • HP ADKT/ADCT 1906 (464)

Spare Parts

Designation
HP F90AT-19 SR 14-571/L BLD T10/S7 SW6-SD SR M10X30 DIN912
