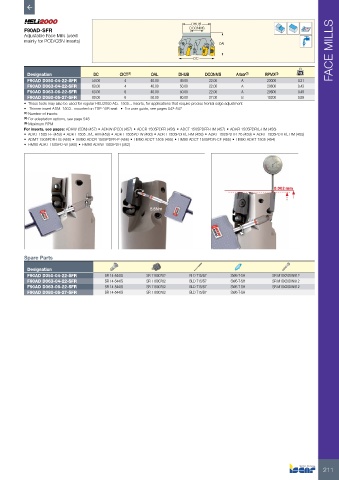

Page 213 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
F90AD-SFR
Adjustable Face Mills (used
mainly for PCD/CBN inserts)
OAL FACE MILLS
DC

Designation DC CICT (1) OAL DHUB DCONMS Arbor (2) RPMX (3) kg
F90AD D050-04-22-SFR 50.00 4 40.00 49.00 22.00 A 23000 0.31
F90AD D063-04-22-SFR 63.00 4 40.00 50.00 22.00 A 20600 0.43
F90AD D063-06-22-SFR 63.00 6 40.00 50.00 22.00 A 20600 0.49
F90AD D080-06-27-SFR 80.00 6 50.00 60.00 27.00 B 18200 0.89
• These tools may also be used for regular HELI2000 AD.. 1505... inserts, for applications that require precise frontal edge adjustment
• Thinner insert ADM. 1503.. mounted on TSP-15R seat • For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum RPM
For inserts, see pages: ADKW (CBN) (457) • ADKW (PCD) (457) • ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456)
• ADKT 1505-FF (459) • ADKT 1505..R/L-HM (459) • ADKT 1505PD-W (460) • ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458)
• ADMT 1505PDR-HS (458) • HM90 ADCR 1505PDFR-P (456) • HM90 ADCT 1505 (455) • HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454)
• HM90 ADKT 1505PD-W (460) • HM90 ADKW 1505PDR (462)

0.002 mm

Spare Parts
Designation
F90AD D050-04-22-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH SR M10X20DIN912
F90AD D063-04-22-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH SR M10X20DIN912
F90AD D063-06-22-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH SR M10X20DIN912
F90AD D080-06-27-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH

211
