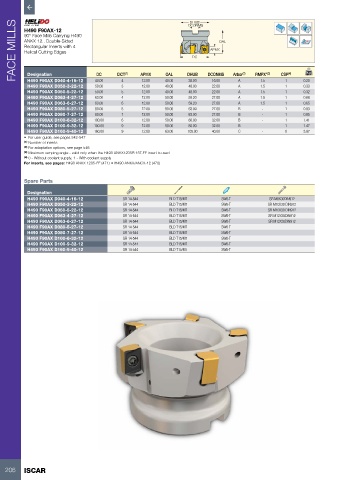

Page 208 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS H490 F90AX-12 DCONMS APMX OAL
DHUB

90° Face Mills Carrying H490
ANKX 12.. Double-Sided
Rectangular Inserts with 4
Helical Cutting Edges
DC

kg
Designation
DC
OAL
H490 F90AX D040-4-16-12
4
1
A
1.5
16.00
38.00
12.00
H490 F90AX D050-3-22-12 40.00 CICT (1) APMX 40.00 DHUB DCONMS Arbor (2) RMPX° (3) CSP (4) 0.20
40.00
12.00
48.00
1
0.33
A
50.00
1.5
3
22.00
H490 F90AX D050-5-22-12 50.00 5 12.00 40.00 48.00 22.00 A 1.5 1 0.32
H490 F90AX D063-4-27-12 63.00 4 12.00 50.00 59.20 27.00 A 1.5 1 0.68
H490 F90AX D063-6-27-12 63.00 6 12.00 50.00 59.20 27.00 A 1.5 1 0.65
H490 F90AX D080-5-27-12 80.00 5 12.00 50.00 63.00 27.00 B - 1 0.83
H490 F90AX D080-7-27-12 80.00 7 12.00 50.00 63.00 27.00 B - 1 0.85
H490 F90AX D100-6-32-12 100.00 6 12.00 50.00 80.00 32.00 B - 1 1.41
H490 F90AX D100-9-32-12 100.00 9 12.00 50.00 80.00 32.00 B - 1 1.47
H490 F90AX D160-9-40-12 160.00 9 12.00 63.00 105.00 40.00 C - 0 3.87
• For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum ramping angle - valid only when the H490 ANKX1205R 15T-FF insert is used
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: H490 ANKX 1205-FF (471) • H490 ANKX/ANCX-12 (470)
Spare Parts
Designation
H490 F90AX D040-4-16-12 SR 14-544 BLD T15/M7 SW6-T SR M8X30DIN912
H490 F90AX D050-3-22-12 SR 14-544 BLD T15/M7 SW6-T SR M10X30 DIN912
H490 F90AX D050-5-22-12 SR 14-544 BLD T15/M7 SW6-T SR M10X30 DIN912
H490 F90AX D063-4-27-12 SR 14-544 BLD T15/M7 SW6-T SR M12X35DIN912
H490 F90AX D063-6-27-12 SR 14-544 BLD T15/M7 SW6-T SR M12X35DIN912
H490 F90AX D080-5-27-12 SR 14-544 BLD T15/M7 SW6-T
H490 F90AX D080-7-27-12 SR 14-544 BLD T15/M7 SW6-T
H490 F90AX D100-6-32-12 SR 14-544 BLD T15/M7 SW6-T
H490 F90AX D100-9-32-12 SR 14-544 BLD T15/M7 SW6-T
H490 F90AX D160-9-40-12 SR 14-544 BLD T15/M7 SW6-T

206 ISCAR
