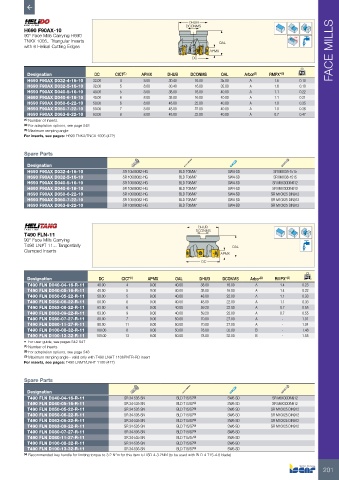

Page 203 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
H690 F90AX-10
90° Face Mills Carrying H690 Rd°
TNKX 1005.. Triangular Inserts OAL
with 6 Helical Cutting Edges
APMX FACE MILLS
DC

Designation DC CICT (1) APMX DHUB DCONMS OAL Arbor (2) RMPX° (3) kg
H690 F90AX D032-4-16-10 32.00 4 8.00 30.40 16.00 35.00 A 1.6 0.10
H690 F90AX D032-5-16-10 32.00 5 8.00 30.40 16.00 35.00 A 1.6 0.10
H690 F90AX D040-5-16-10 40.00 5 8.00 38.00 16.00 40.00 A 1.1 0.22
H690 F90AX D040-6-16-10 40.00 6 8.00 38.00 16.00 40.00 A 1.1 0.21
H690 F90AX D050-6-22-10 50.00 6 8.00 48.00 22.00 40.00 A 1.0 0.35
H690 F90AX D050-7-22-10 50.00 7 8.00 48.00 22.00 40.00 A 1.0 0.36
H690 F90AX D063-8-22-10 63.00 8 8.00 48.00 22.00 40.00 A 0.7 0.47
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum ramping angle
For inserts, see pages: H690 TNKX/TNCX 1005 (472)

Spare Parts

Designation
H690 F90AX D032-4-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X38-1515
H690 F90AX D032-5-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X38-1515
H690 F90AX D040-5-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X30DIN912
H690 F90AX D040-6-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X30DIN912
H690 F90AX D050-6-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912
H690 F90AX D050-7-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912
H690 F90AX D063-8-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912

DHUB
DCONMS
T490 FLN-11
90° Face Mills Carrying
T490 LN#T 11... Tangentially OAL
Clamped Inserts
APMX
DC

Designation DC CICT (1) APMX OAL DHUB DCONMS Arbor (2) RMPX° (3) kg
T490 FLN D040-04-16-R-11 40.00 4 9.00 40.00 38.00 16.00 A 1.4 0.23
T490 FLN D040-05-16-R-11 40.00 5 9.00 40.00 38.00 16.00 A 1.4 0.22
T490 FLN D050-05-22-R-11 50.00 5 9.00 40.00 48.00 22.00 A 1.1 0.33
T490 FLN D050-06-22-R-11 50.00 6 9.00 40.00 48.00 22.00 A 1.1 0.33
T490 FLN D063-06-22-R-11 63.00 6 9.00 40.00 59.20 22.00 A 0.7 0.55
T490 FLN D063-09-22-R-11 63.00 9 9.00 40.00 59.20 22.00 A 0.7 0.55
T490 FLN D080-07-27-R-11 80.00 7 9.00 50.00 70.00 27.00 A - 1.01
T490 FLN D080-11-27-R-11 80.00 11 9.00 50.00 70.00 27.00 A - 1.04
T490 FLN D100-08-32-R-11 100.00 8 9.00 50.00 78.00 32.00 B - 1.48
T490 FLN D100-13-32-R-11 100.00 13 9.00 50.00 78.00 32.00 B - 1.55
• For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum ramping angle - valid only with T490 LNHT 1106PNTR-RD insert
For inserts, see pages: T490 LNMT/LNHT 1106 (477)

Spare Parts
Designation
T490 FLN D040-04-16-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M8X30DIN912
T490 FLN D040-05-16-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M8X30DIN912
T490 FLN D050-05-22-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M10X25 DIN912
T490 FLN D050-06-22-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M10X25 DIN912
T490 FLN D063-06-22-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M10X25 DIN912
T490 FLN D063-09-22-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD SR M10X25 DIN912
T490 FLN D080-07-27-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 FLN D080-11-27-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 FLN D100-08-32-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD
T490 FLN D100-13-32-R-11 SR 34-535-SN BLD T15/S7 (a) SW6-SD
(a) Recommended key handle for limiting torque to 3.2 N*m for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade)

201
