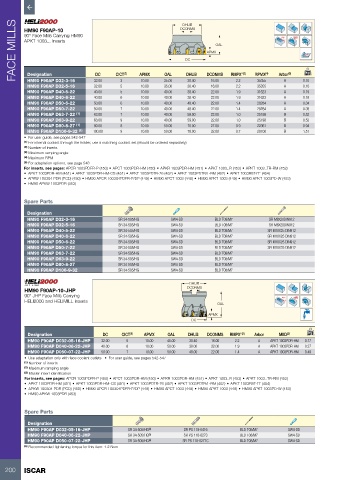

FACE MILLS HM90 F90AP-10 DCONMS APMX OAL Rd°
DHUB

90° Face Mills Carrying HM90
APKT 1003... Inserts

DC

kg
Designation
OAL
DC
HM90 F90AP D32-3-16
16.00
35355
2.2
10.00
3
30.40
A
HM90 F90AP D32-5-16 32.00 CICT (2) APMX 35.00 DHUB DCONMS RMPX° (3) RPMX (4) Arbor (5) 0.10
5
30.40
35.00
10.00
32.00
A
35355
2.2
16.00
0.10
HM90 F90AP D40-5-22 40.00 5 10.00 40.00 38.40 22.00 1.9 31623 A 0.19
HM90 F90AP D40-6-22 40.00 6 10.00 40.00 38.40 22.00 1.9 31623 A 0.18
HM90 F90AP D50-6-22 50.00 6 10.00 40.00 48.40 22.00 1.4 28284 A 0.34
HM90 F90AP D50-7-22 50.00 7 10.00 40.00 48.40 22.00 1.4 28284 A 0.35
HM90 F90AP D63-7-22 (1) 63.00 7 10.00 40.00 59.00 22.00 1.0 25198 B 0.52
HM90 F90AP D63-9-22 63.00 9 10.00 40.00 59.00 22.00 1.0 25198 B 0.52
HM90 F90AP D80-8-27 (1) 80.00 8 10.00 50.00 70.00 27.00 0.9 22361 B 0.94
HM90 F90AP D100-9-32 (1) 100.00 9 10.00 50.00 78.00 32.00 0.7 20100 B 1.51
• For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Number of inserts
(3) Maximum ramping angle
(4) Maximum RPM
(5) For adaptation options, see page 548
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
Spare Parts
Designation
HM90 F90AP D32-3-16 SR 34-505/HG SW4-SD BLD T08/M7 SR M8X20DIN912
HM90 F90AP D32-5-16 SR 34-505/HG SW4-SD BLD T08/M7 SR M8X20DIN912
HM90 F90AP D40-5-22 SR 34-505/HG SW4-SD BLD T08/M7 SR M10X25 DIN912
HM90 F90AP D40-6-22 SR 34-505/HG SW4-SD BLD T08/M7 SR M10X25 DIN912
HM90 F90AP D50-6-22 SR 34-505/HG SW4-SD BLD T08/M7 SR M10X25 DIN912
HM90 F90AP D50-7-22 SR 34-505/HG SW4-SD BLD T08/M7 SR M10X25 DIN912
HM90 F90AP D63-7-22 SR 34-505/HG SW4-SD BLD T08/M7
HM90 F90AP D63-9-22 SR 34-505/HG SW4-SD BLD T08/M7
HM90 F90AP D80-8-27 SR 34-505/HG SW4-SD BLD T08/M7
HM90 F90AP D100-9-32 SR 34-505/HG SW4-SD BLD T08/M7
DHUB
DCONMS
HM90 F90AP-10-JHP
90° JHP Face Mills Carrying Rd°
HELI2000 and HELIMILL Inserts
OAL
APMX
DC
Designation DC CICT (1) APMX OAL DHUB DCONMS RMPX° (2) Arbor MIID (3) kg
HM90 F90AP D032-05-16-JHP 32.00 5 10.00 45.00 30.40 16.00 2.2 A APKT 1003PDR-HM 0.17
HM90 F90AP D040-06-22-JHP 40.00 6 10.00 50.00 38.00 22.00 1.9 A APKT 1003PDR-HM 0.27
HM90 F90AP D050-07-22-JHP 50.00 7 10.00 50.00 48.00 22.00 1.4 A APKT 1003PDR-HM 0.49
• Use adaptation only with face coolant outlets • For user guide, see pages 542-547
(1) Number of inserts
(2) Maximum ramping angle
(3) Master insert identification
For inserts, see pages: APCR 1003PDFR-P (450) • APCT 1003PDR-HM (450) • APKR 1003PDR-HM (451) • APKT 1003..R (453) • APKT 1003..TR-RM (452)
• APKT 1003PDR-HM (451) • APKT 1003PDR-HM-CS (451) • APKT 1003PDTR-76 (452) • APKT 1003PDTR/L-RM (452) • APKT 1003R8T-FF (454)
• APKW 100304 PDR (PCD) (450) • HM90 APCR 100304PDFR-P/DP (449) • HM90 APCT 1003 (448) • HM90 APKT 1003 (449) • HM90 APKT 1003PD-W (453)
• HM90 APKW 1003PDR (453)
Spare Parts
Designation
HM90 F90AP D032-05-16-JHP SR 34-505/HG (a) SR PS 118-0416 BLD T08/M7 SW4-SD
HM90 F90AP D040-06-22-JHP SR 34-505/HG (a) SR PS 118-0273 BLD T08/M7 SW4-SD
HM90 F90AP D050-07-22-JHP SR 34-505/HG (a) SR PS 118-0271C BLD T08/M7 SW4-SD
(a) Recommended tightening torque for this item: 1.2 Nxm
