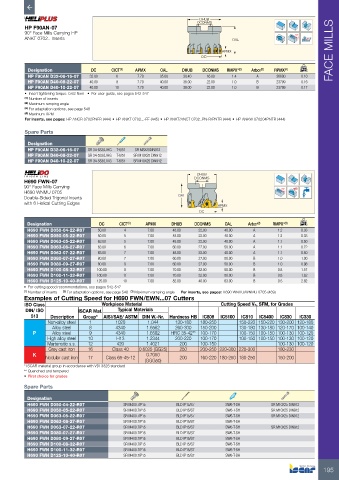

Page 197 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS

HP F90AN-07
90° Face Mills Carrying HP Rd°
ANKT 0702.. Inserts OAL
APMX FACE MILLS
DC

Designation DC CICT (1) APMX OAL DHUB DCONMS RMPX° (2) Arbor (3) RPMX (4) kg
HP F90AN D32-06-16-07 32.00 6 7.70 35.00 30.40 16.00 1.4 A 26600 0.10
HP F90AN D40-08-22-07 40.00 8 7.70 40.00 38.00 22.00 1.0 B 23799 0.16
HP F90AN D40-10-22-07 40.00 10 7.70 40.00 38.00 22.00 1.0 B 23799 0.17
• Insert tightening torque: 0.62 Nxm • For user guide, see pages 542-547
(1) Number of inserts
(2) Maximum ramping angle
(3) For adaptation options, see page 548
(4) Maximum RPM
For inserts, see pages: HP ANCR 0702PNFR (444) • HP ANKT 0702...-FF (445) • HP ANKT/ANCT 0702..PN-R/PNTR (444) • HP ANKW 070204PNTR (444)
Spare Parts

Designation
HP F90AN D32-06-16-07 SR 34-533/L/HG T-6/51 SR M8X20DIN912
HP F90AN D40-08-22-07 SR 34-533/L/HG T-6/51 SR M10X25 DIN912
HP F90AN D40-10-22-07 SR 34-533/L/HG T-6/51 SR M10X25 DIN912

DHUB
DCONMS
H690 FWN-07
90° Face Mills Carrying Rd°
H690 WNMU 0705
Double-Sided Trigonal Inserts OAL
with 6 Helical Cutting Edges
APMX
DC
Designation DC CICT (1) APMX DHUB DCONMS OAL Arbor (2) RMPX° (3) kg
H690 FWN D050-04-22-R07 50.00 4 7.00 48.00 22.00 40.00 A 1.2 0.33
H690 FWN D050-05-22-R07 50.00 5 7.00 48.00 22.00 40.00 A 1.2 0.33
H690 FWN D063-05-22-R07 63.00 5 7.00 48.00 22.00 40.00 A 1.1 0.50
H690 FWN D063-06-27-R07 63.00 6 7.00 60.00 27.00 50.00 A 1.1 0.72
H690 FWN D063-07-22-R07 63.00 7 7.00 48.00 22.00 40.00 A 1.1 0.50
H690 FWN D080-07-27-R07 80.00 7 7.00 60.00 27.00 50.00 B 1.0 1.00
H690 FWN D080-09-27-R07 80.00 9 7.00 60.00 27.00 50.00 B 1.0 0.98
H690 FWN D100-08-32-R07 100.00 8 7.00 70.00 32.00 50.00 B 0.8 1.57
H690 FWN D100-11-32-R07 100.00 11 7.00 70.00 32.00 50.00 B 0.8 1.62
H690 FWN D125-10-40-R07 125.00 10 7.00 82.00 40.00 63.00 B 0.5 2.82
• For cutting speed recommendations, see pages 542-547
(1) Number of inserts (2) For adaptation options, see page 548 (3) Maximum ramping angle For inserts, see pages: H690 WNHU/WNMU 0705 (469)
Examples of Cutting Speed for H690 FWN/EWN...07 Cutters
ISO Class Workpiece Material Cutting Speed Vc, SFM, for Grades
DIN/ ISO ISCAR Mat. Typical Materials
513 Description Group* AISI/SAE/ ASTM DIN W.-Nr. Hardness HB IC808 IC5100 IC810 IC5400 IC830 IC330
Non-alloy steel 1 1020 1.044 130-180 180-250 150-220 150-220 130-200 120-180
Alloy steel 8 4340 1.6582 260-300 150-200 130-180 130-180 120-170 100-140
P Alloy steel 9 4340 1.6582 HRC 35-42** 100-170 100-150 100-150 100-130 100-120
High alloy steel 10 H13 1.2344 200-220 100-170 100-150 100-150 100-130 100-120
Martensitic s.s. 12 420 1.4021 200 100-150 100-130 100-120
Grey cast iron 16 Class 40 0.6025 (GG25) 250 200-250 220-300 220-300 180-230
K 0.7050
Nodular cast iron 17 Class 65-45-12 200 160-220 180-250 180-250 150-200
(GGG50)
* ISCAR material group in accordance with VDI 3323 standard
** Quenched and tempered
• First choice for grades
Spare Parts

Designation
H690 FWN D050-04-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
H690 FWN D050-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
H690 FWN D063-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
H690 FWN D063-06-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 FWN D063-07-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
H690 FWN D080-07-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 FWN D080-09-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 FWN D100-08-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 FWN D100-11-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
H690 FWN D125-10-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH

195
