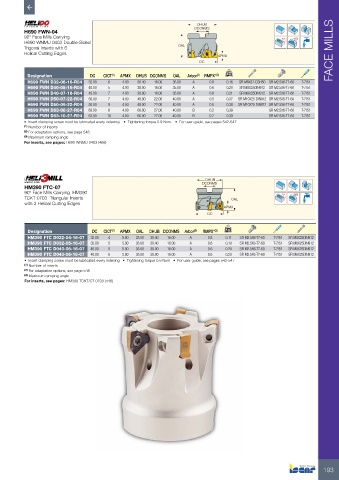

Page 195 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
H690 FWN-04
90° Face Mills Carrying Rd°
H690 WNMU 0403 Double-Sided
Trigonal Inserts with 6 OAL FACE MILLS
Helical Cutting Edges
APMX
DC

Designation DC CICT (1) APMX DHUB DCONMS OAL Arbor (2) RMPX° (3) kg
H690 FWN D32-06-16-R04 32.00 6 4.00 30.40 16.00 35.00 A 0.8 0.16 SR M8X27-CSH50 SR M2.5X6-T7-60 T-7/51
H690 FWN D40-05-16-R04 40.00 5 4.00 38.00 16.00 35.00 A 0.6 0.20 SR M8X25DIN912 SR M2.5X6-T7-60 T-7/51
H690 FWN D40-07-16-R04 40.00 7 4.00 38.00 16.00 35.00 A 0.6 0.21 SR M8X25DIN912 SR M2.5X6-T7-60 T-7/51
H690 FWN D50-07-22-R04 50.00 7 4.00 48.00 22.00 40.00 A 0.5 0.37 SR M10X25 DIN912 SR M2.5X6-T7-60 T-7/51
H690 FWN D50-09-22-R04 50.00 9 4.00 48.00 22.00 40.00 A 0.5 0.38 SR M10X25 DIN912 SR M2.5X6-T7-60 T-7/51
H690 FWN D63-08-27-R04 63.00 8 4.00 60.00 27.00 40.00 B 0.2 0.39 SR M2.5X6-T7-60 T-7/51
H690 FWN D63-10-27-R04 63.00 10 4.00 60.00 27.00 40.00 B 0.2 0.39 SR M2.5X6-T7-60 T-7/51
• Insert clamping screw must be lubricated every indexing. • Tightening torque 0.9 Nxm. • For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum ramping angle
For inserts, see pages: H690 WNMU 0403 (468)

DHUB
DCONMS

HM390 FTC-07
90° Face Mills Carrying HM390 Rd°
TCKT 0703 Triangular Inserts OAL
with 3 Helical Cutting Edges
APMX
DC

Designation DC CICT (1) APMX OAL DHUB DCONMS Arbor (2) RMPX° (3) kg
HM390 FTC D032-04-16-07 32.00 4 5.00 35.00 30.40 16.00 A 0.8 0.11 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912
HM390 FTC D032-05-16-07 32.00 5 5.00 35.00 30.40 16.00 A 0.8 0.10 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912
HM390 FTC D040-05-16-07 40.00 5 5.00 35.00 38.00 16.00 A 0.6 0.20 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912
HM390 FTC D040-06-16-07 40.00 6 5.00 35.00 38.00 16.00 A 0.6 0.20 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912
• Insert clamping screw must be lubricated every indexing • Tightening torque 0.9 Nxm • For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
(3) Maximum ramping angle
For inserts, see pages: HM390 TCKT/CT 0703 (446)
