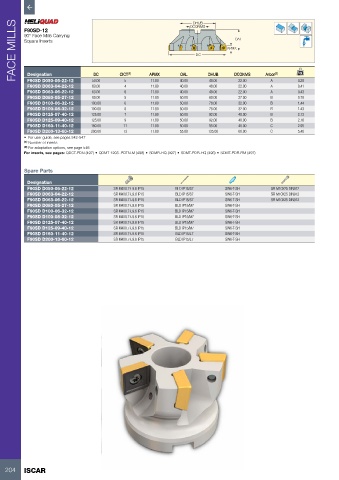

Page 206 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS F90SD-12 DCONMS APMX OAL
DHUB
90° Face Mills Carrying
Square Inserts

DC

DC
OAL
Designation
F90SD D050-05-22-12
A
22.00
0.28
11.80
5
48.00
F90SD D063-04-22-12 50.00 CICT (1) APMX 40.00 DHUB DCONMS Arbor (2) kg
11.80
4
40.00
0.41
A
22.00
48.00
63.00
F90SD D063-06-22-12 63.00 6 11.80 40.00 48.00 22.00 A 0.43
F90SD D080-05-27-12 80.00 5 11.80 50.00 60.00 27.00 B 0.79
F90SD D100-06-32-12 100.00 6 11.80 50.00 78.00 32.00 B 1.44
F90SD D100-08-32-12 100.00 8 11.80 50.00 78.00 32.00 B 1.43
F90SD D125-07-40-12 125.00 7 11.80 50.00 92.00 40.00 B 2.13
F90SD D125-09-40-12 125.00 9 11.80 50.00 92.00 40.00 B 2.16
F90SD D160-11-40-12 160.00 11 11.80 50.00 95.00 40.00 C 2.95
F90SD D200-13-60-12 200.00 13 11.80 55.00 135.00 60.00 C 5.40
• For user guide, see pages 542-547
(1) Number of inserts
(2) For adaptation options, see page 548
For inserts, see pages: QDCT-PDN (497) • QDMT 1205..PDTN-M (498) • SDMR-HQ (497) • SDMT-PDR-HQ (496) • SDMT-PDR-RM (497)
Spare Parts
Designation
F90SD D050-05-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
F90SD D063-04-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
F90SD D063-06-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
F90SD D080-05-27-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH
F90SD D100-06-32-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH
F90SD D100-08-32-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH
F90SD D125-07-40-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH
F90SD D125-09-40-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH
F90SD D160-11-40-12 SR M4X0.7-L9.6 IP15 BLD IP15/L7 SW6-T-SH
F90SD D200-13-60-12 SR M4X0.7-L9.6 IP15 BLD IP15/L7 SW6-T-SH
