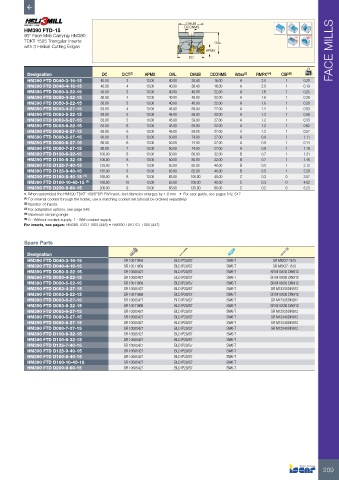

Page 211 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
HM390 FTD-15
90° Face Mills Carrying HM390 Rd°
TDKT 1505 Triangular Inserts OAL
with 3 Helical Cutting Edges
APMX FACE MILLS
DC

Designation DC CICT (2) APMX OAL DHUB DCONMS Arbor (3) RMPX° (4) CSP (5) kg
HM390 FTD D040-3-16-15 40.00 3 13.00 40.00 38.40 16.00 A 2.0 1 0.20
HM390 FTD D040-4-16-15 40.00 4 13.00 40.00 38.40 16.00 A 2.0 1 0.19
HM390 FTD D050-3-22-15 50.00 3 13.00 40.00 46.00 22.00 A 1.6 1 0.25
HM390 FTD D050-4-22-15 50.00 4 13.00 40.00 46.00 22.00 A 1.6 1 0.28
HM390 FTD D050-5-22-15 50.00 5 13.00 40.00 46.00 22.00 A 1.6 1 0.28
HM390 FTD D063-4-27-15 63.00 4 13.00 45.00 59.00 27.00 A 1.2 1 0.53
HM390 FTD D063-5-22-15 63.00 5 13.00 45.00 59.00 22.00 A 1.2 1 0.58
HM390 FTD D063-5-27-15 63.00 5 13.00 45.00 59.00 27.00 A 1.2 1 0.53
HM390 FTD D063-6-22-15 63.00 6 13.00 45.00 59.00 22.00 A 1.2 1 0.62
HM390 FTD D063-6-27-15 63.00 6 13.00 45.00 59.00 27.00 A 1.2 1 0.57
HM390 FTD D080-5-27-15 80.00 5 13.00 50.00 74.00 27.00 A 0.9 1 1.11
HM390 FTD D080-6-27-15 80.00 6 13.00 50.00 74.00 27.00 A 0.9 1 0.14
HM390 FTD D080-7-27-15 80.00 7 13.00 50.00 74.00 27.00 A 0.9 1 1.18
HM390 FTD D100-6-32-15 100.00 6 13.00 50.00 80.00 32.00 B 0.7 1 1.31
HM390 FTD D100-8-32-15 100.00 8 13.00 50.00 80.00 32.00 B 0.7 1 1.46
HM390 FTD D125-7-40-15 125.00 7 13.00 63.00 82.00 40.00 B 0.5 1 2.12
HM390 FTD D125-9-40-15 125.00 9 13.00 63.00 82.00 40.00 B 0.5 1 2.29
HM390 FTD D160-8-40-15 (1) 160.00 8 13.00 63.00 105.00 40.00 C 0.3 0 3.57
HM390 FTD D160-10-40-15 (1) 160.00 10 13.00 63.00 105.00 40.00 C 0.3 0 4.02
HM390 FTD D200-9-60-15 200.00 9 13.00 63.00 135.00 60.00 C 0.2 0 5.23
• When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm • For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Number of inserts
(3) For adaptation options, see page 548
(4) Maximum ramping angle
(5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: HM390 TDCR 1505 (448) • HM390 TDKT/CT 1505 (447)

Spare Parts

Designation
HM390 FTD D040-3-16-15 SR 10511869 BLD IP20/S7 SW6-T SR M8X37-1515
HM390 FTD D040-4-16-15 SR 10511869 BLD IP20/S7 SW6-T SR M8X37-1515
HM390 FTD D050-3-22-15 SR 10505427 BLD IP20/S7 SW6-T SR M10X30 DIN912
HM390 FTD D050-4-22-15 SR 10505427 BLD IP20/S7 SW6-T SR M10X30 DIN912
HM390 FTD D050-5-22-15 SR 10511869 BLD IP20/S7 SW6-T SR M10X30 DIN912
HM390 FTD D063-4-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X35DIN912
HM390 FTD D063-5-22-15 SR 10511869 BLD IP20/S7 SW6-T SR M10X30 DIN912
HM390 FTD D063-5-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X35DIN912
HM390 FTD D063-6-22-15 SR 10511869 BLD IP20/S7 SW6-T SR M10X30 DIN912
HM390 FTD D063-6-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X35DIN912
HM390 FTD D080-5-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X40DIN912
HM390 FTD D080-6-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X40DIN912
HM390 FTD D080-7-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X40DIN912
HM390 FTD D100-6-32-15 SR 10505427 BLD IP20/S7 SW6-T
HM390 FTD D100-8-32-15 SR 10505427 BLD IP20/S7 SW6-T
HM390 FTD D125-7-40-15 SR 10505427 BLD IP20/S7 SW6-T
HM390 FTD D125-9-40-15 SR 10505427 BLD IP20/S7 SW6-T
HM390 FTD D160-8-40-15 SR 10505427 BLD IP20/S7 SW6-T
HM390 FTD D160-10-40-15 SR 10505427 BLD IP20/S7 SW6-T
HM390 FTD D200-9-60-15 SR 10505427 BLD IP20/S7 SW6-T
