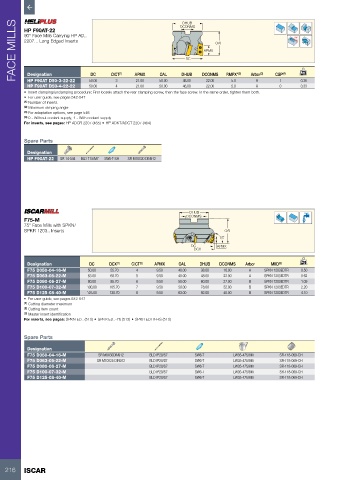

Page 218 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS HP F90AT-22 DCONMS APMX OAL Rd°
DHUB
90° Face Mills Carrying HP AD..
2207... Long Edged Inserts

DC

kg
DC
OAL
Designation
HP F90AT D50-3-22-22
48.00
3
5.0
21.00
A
1
22.00
HP F90AT D50-4-22-22 50.00 CICT (1) APMX 50.00 DHUB DCONMS RMPX° (2) Arbor (3) CSP (4) 0.36
A
5.0
0
48.00
0.33
21.00
50.00
4
50.00
22.00
• Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both.
• For user guide, see pages 542-547
(1) Number of inserts
(2) Maximum ramping angle
(3) For adaptation options, see page 548
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: HP ADCR 2207 (465) • HP ADKT/ADCT 2207 (464)
Spare Parts
Designation
HP F90AT-22 SR 14-544 BLD T15/M7 SW6-T-SH SR M10X30 DIN912
DHUB
DCONMS
F75-M
75° Face Mills with SPKN/
SPKR 1203.. Inserts OAL
75˚
DC APMX
DCX
Designation DC DCX (1) CICT (2) APMX OAL DHUB DCONMS Arbor MIID (3) kg
F75 D050-04-16-M 50.00 55.70 4 9.50 40.00 38.00 16.00 A SPKN 1203EDTR 0.50
F75 D063-05-22-M 63.00 68.70 5 9.50 40.00 48.00 22.00 A SPKN 1203EDTR 0.62
F75 D080-06-27-M 80.00 85.70 6 9.50 50.00 60.00 27.00 B SPKN 1203EDTR 1.09
F75 D100-07-32-M 100.00 105.70 7 9.50 50.00 78.00 32.00 B SPKN 1203EDTR 2.20
F75 D125-08-40-M 125.00 130.70 8 9.50 63.00 92.00 40.00 B SPKN 1203EDTR 4.10
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Cutting item count
(3) Master insert identification
For inserts, see pages: SPKN ED.. (513) • SPKR ED..-76 (513) • SPKR EDTR-HS (513)

Spare Parts

Designation
F75 D050-04-16-M SR M8X30DIN912 BLD IP20/S7 SW6-T LW35-475/8M SR-118-069-CH
F75 D063-05-22-M SR M10X25 DIN912 BLD IP20/S7 SW6-T LW35-475/8M SR-118-069-CH
F75 D080-06-27-M BLD IP20/S7 SW6-T LW35-475/8M SR-118-069-CH
F75 D100-07-32-M BLD IP20/S7 SW6-T LW35-475/8M SR-118-069-CH
F75 D125-08-40-M BLD IP20/S7 SW6-T LW35-475/8M SR-118-069-CH

216 ISCAR
