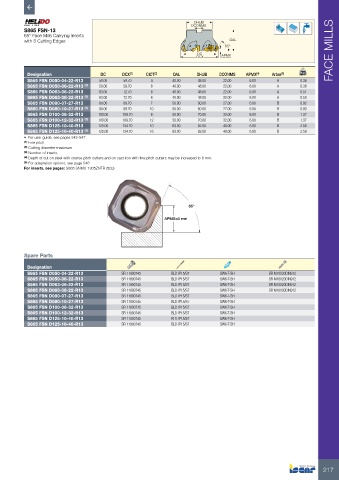

Page 219 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS

S865 FSN-13
65° Face Mills Carrying Inserts
with 8 Cutting Edges OAL
65°
DC FACE MILLS
DCX APMX

Designation DC DCX (2) CICT (3) OAL DHUB DCONMS APMX (4) Arbor (5) kg
S865 FSN D050-04-22-R13 50.00 59.70 4 40.00 48.00 22.00 6.00 A 0.36
S865 FSN D050-06-22-R13 (1) 50.00 59.70 6 40.00 48.00 22.00 6.00 A 0.36
S865 FSN D063-06-22-R13 63.00 72.70 6 40.00 48.00 22.00 6.00 A 0.51
S865 FSN D063-08-22-R13 (1) 63.00 72.70 8 40.00 48.00 22.00 6.00 A 0.50
S865 FSN D080-07-27-R13 80.00 89.70 7 50.00 60.00 27.00 6.00 B 0.92
S865 FSN D080-10-27-R13 (1) 80.00 89.70 10 50.00 60.00 27.00 6.00 B 0.93
S865 FSN D100-08-32-R13 100.00 109.70 8 50.00 70.00 32.00 6.00 B 1.37
S865 FSN D100-12-32-R13 (1) 100.00 109.70 12 50.00 70.00 32.00 6.00 B 1.37
S865 FSN D125-10-40-R13 125.00 134.70 10 63.00 82.00 40.00 6.00 B 2.58
S865 FSN D125-16-40-R13 (1) 125.00 134.70 16 63.00 82.00 40.00 6.00 B 2.59
• For user guide, see pages 542-547
(1) Fine pitch
(2) Cutting diameter maximum
(3) Number of inserts
(4) Depth of cut on steel with coarse pitch cutters and on cast iron with fine pitch cutters may be increased to 8 mm.
(5) For adaptation options, see page 548
For inserts, see pages: S865 SNMU 1305ZNTR (503)

65°

APMX=8 mm

Spare Parts

Designation
S865 FSN D050-04-22-R13 SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X20DIN912
S865 FSN D050-06-22-R13 SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X20DIN912
S865 FSN D063-06-22-R13 SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X20DIN912
S865 FSN D063-08-22-R13 SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X20DIN912
S865 FSN D080-07-27-R13 SR 11800745 BLD IP15/S7 SW6-T-SH
S865 FSN D080-10-27-R13 SR 11800745 BLD IP15/S7 SW6-T-SH
S865 FSN D100-08-32-R13 SR 11800745 BLD IP15/S7 SW6-T-SH
S865 FSN D100-12-32-R13 SR 11800745 BLD IP15/S7 SW6-T-SH
S865 FSN D125-10-40-R13 SR 11800745 BLD IP15/S7 SW6-T-SH
S865 FSN D125-16-40-R13 SR 11800745 BLD IP15/S7 SW6-T-SH

217
