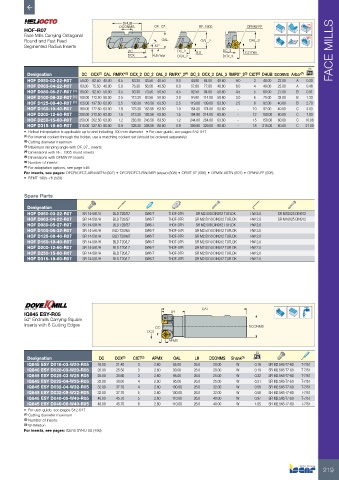

Page 221 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS OF.. 07.. RF..1905 OFMW FF Rd°
HOF-R07
Face Mills Carrying Octagonal
Round and Fast Feed OAL OAL_2 OAL_3
Segmented Radius Inserts 42°
DC DC_2 9.8 DC_3 2.2 max FACE MILLS
DCX 4.6 max DCX_2 DCX_3

(5)
Designation DC DCX (2) OAL RMPX° (3) DCX_2 DC_2 OAL_2 RMPX°_2 (4) DC_3 DCX_3 OAL_3 RMPX°_3 CICT (6) DHUB DCONMS Arbor (7) kg
HOF D050-03-22-R07 50.00 62.50 40.00 6.5 63.30 43.56 40.50 9.0 44.80 64.00 40.60 9.0 3 48.00 22.00 A 0.30
HOF D063-04-22-R07 63.00 75.50 40.00 5.0 76.30 56.56 40.50 6.0 57.80 77.00 40.60 6.0 4 48.00 22.00 A 0.48
HOF D080-05-27-R07 (1) 80.00 92.50 50.00 3.5 93.30 73.56 50.50 4.5 92.50 94.00 50.60 4.5 5 60.00 27.00 B 0.91
HOF D100-06-32-R07 (1) 100.00 112.50 50.00 2.5 113.30 93.56 50.50 3.0 94.80 114.00 50.60 3.0 6 70.00 32.00 B 1.33
HOF D125-08-40-R07 (1) 125.00 137.50 63.00 2.5 138.30 118.56 63.50 2.5 119.80 139.00 63.60 2.5 8 82.00 40.00 B 2.70
HOF D160-10-40-R07 160.00 172.50 63.00 1.9 173.30 153.56 63.50 1.9 154.80 174.00 63.60 - 10 92.00 40.00 C 3.83
HOF D200-12-60-R07 200.00 212.50 63.00 1.5 213.30 193.56 63.50 1.5 194.80 214.00 63.60 - 12 150.00 60.00 C 7.03
HOF D250-15-60-R07 250.00 262.50 63.00 1.2 263.30 243.56 63.50 1.2 244.80 264.00 63.60 - 15 150.00 60.00 C 10.08
HOF D315-18-60-R07 315.00 327.50 80.00 0.9 328.30 308.56 80.50 0.9 309.80 329.00 80.60 - 18 215.00 60.00 C 21.00
• Helical interpolation is applicable up to and including 100 mm diameter • For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Cutting diameter maximum
(3) Maximum ramping angle with OF..07.. inserts
(4) Dimensions with RF.. 1905 round inserts
(5) Dimensions with OFMW FF inserts
(6) Number of inserts
(7) For adaptation options, see page 548
For inserts, see pages: OFCR/OFCT-AEN/AETN (507) • OFCR/OFCT-RW/AER (wiper) (508) • OFMT 07 (506) • OFMW-AETN (507) • OFMW-FF (508)
• RFMT 1905-76 (529)

Spare Parts

Designation
HOF D050-03-22-R07 SR 14-591/H BLD T20/S7 SW6-T THOF-07R SR M2.5X8 DIN912 TUFLOK HW 2.0 SR M10X25 DIN912
HOF D063-04-22-R07 SR 14-591/H BLD T20/S7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0 SR M10X25 DIN912
HOF D080-05-27-R07 SR 14-591/H BLD T20/S7 SW6-T THOF-07R SR M2.5X8 DIN912 TUFLOK HW 2.0
HOF D100-06-32-R07 SR 14-591/H BLD T20/M7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0
HOF D125-08-40-R07 SR 14-591/H BLD T20/M7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0
HOF D160-10-40-R07 SR 14-591/H BLD T20/L7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0
HOF D200-12-60-R07 SR 14-591/H BLD T20/L7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0
HOF D250-15-60-R07 SR 14-591/H BLD T20/L7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0
HOF D315-18-60-R07 SR 14-591/H BLD T20/L7 SW6-T THOF-07R SR M2.5X10 DIN912 TUFLOK HW 2.0

OAL
LH
IQ845 ESY-R05
50° Endmills Carrying Square
Inserts with 8 Cutting Edges DCONMS
DC
DCX
APMX

Designation DC DCX (1) CICT (2) APMX OAL LH DCONMS Shank (3) kg
IQ845 ESY D016-03-W20-R05 16.00 21.40 3 2.60 85.00 26.0 20.00 W 0.16 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D020-03-W20-R05 20.00 25.50 3 2.60 90.00 26.0 20.00 W 0.19 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D025-03-W25-R05 25.00 30.60 3 2.60 95.00 26.0 25.00 W 0.32 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D025-04-W25-R05 25.00 30.60 4 2.60 95.00 26.0 25.00 W 0.31 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D032-04-W32-R05 32.00 37.70 4 2.60 100.00 26.0 32.00 W 0.56 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D032-05-W32-R05 32.00 37.70 5 2.60 100.00 26.0 32.00 W 0.56 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D040-05-W40-R05 40.00 45.70 5 2.60 110.00 26.0 40.00 W 0.97 SR M2.5X6-T7-60 T-7/51
IQ845 ESY D040-06-W40-R05 40.00 45.70 6 2.60 110.00 26.0 40.00 W 1.05 SR M2.5X6-T7-60 T-7/51
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Number of inserts
(3) W-Weldon
For inserts, see pages: IQ845 SYHU-05 (499)

219
