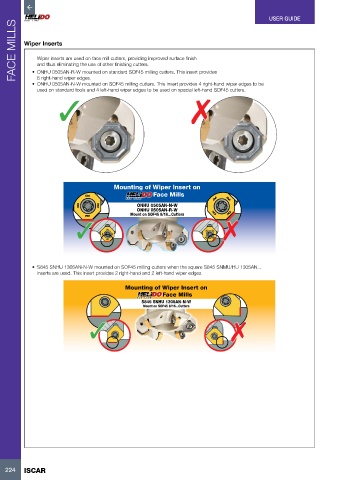

USER GUIDE
FACE MILLS Wiper Inserts
Wiper inserts are used on face mill cutters, providing improved surface finish
and thus eliminating the use of other finishing cutters.
• ONHU 0505AN-R-W mounted on standard SOF45 milling cutters. This insert provides
8 right-hand wiper edges.
• ONHU 0505AN-N-W mounted on SOF45 milling cutters. This insert provides 4 right-hand wiper edges to be
used on standard tools and 4 left-hand wiper edges to be used on special left-hand SOF45 cutters.
3 3 7 7
Mounting of Wiper Insert on
Face Mills
ONHU 0505AN-N-W
ONHU 0505AN-R-W
Mount on SOF45 8/16...Cutters
3 3 7 7
• S845 SNHU 1305AN-N-W mounted on SOF45 milling cutters when the square S845 SNMU/HU 1305AN...
inserts are used. This insert provides 2 right-hand and 2 left-hand wiper edges.
Mounting of Wiper Insert on
Face Mills
S845 SNHU 1305AN-N-W
Mount on SOF45 8/16...Cutters
3 3 7 7
