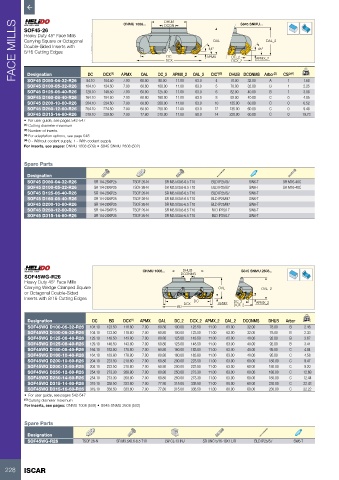

Page 230 - ISCAR(MILLINGCATALOG 38_2021)

FACE MILLS SOF45-26 ONMU 1008... DHUB APMX DC_2 S845 SNMU... OAL_2
DCON
Heavy Duty 45° Face Mills
Carrying Square or Octagonal
OAL
Double-Sided Inserts with
44°
45°
8/16 Cutting Edges
DC
APMX_2
DCX
DCX_2
Designation
DC
SOF45 D080-04-32-R26
A
80.00
4
11.00
32.00
70.00
104.50
1.68
7.00
63.0
60.80
84.10
1
SOF45 D100-05-32-R26 104.10 DCX (1) APMX OAL DC_2 APMX_2 OAL_2 CICT (2) DHUB DCONMS Arbor (3) CSP (4) kg
7.00
2.25
32.00
100.00
124.50
60.80
5
B
1
63.0
70.00
11.00
SOF45 D125-06-40-R26 129.10 149.50 7.00 60.80 125.00 11.00 63.0 6 82.00 40.00 B 1 3.08
SOF45 D160-08-40-R26 164.10 184.50 7.00 60.80 160.00 11.00 63.0 8 92.00 40.00 C 0 4.05
SOF45 D200-10-60-R26 204.10 224.50 7.00 60.80 200.00 11.00 63.0 10 135.00 60.00 C 0 6.52
SOF45 D250-12-60-R26 254.10 274.50 7.00 60.80 250.00 11.00 63.0 12 135.00 60.00 C 0 9.48
SOF45 D315-14-60-R26 319.10 339.50 7.00 77.80 315.00 11.00 80.0 14 220.00 60.00 C 0 19.73
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Number of inserts
(3) For adaptation options, see page 548
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: ONMU 1008 (509) • S845 SNMU 2608 (502)
Spare Parts
Designation
SOF45 D080-04-32-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/S7 SW6-T SR M16-40C
SOF45 D100-05-32-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/S7 SW6-T SR M16-40C
SOF45 D125-06-40-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/S7 SW6-T
SOF45 D160-08-40-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/M7 SW6-T
SOF45 D200-10-60-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/M7 SW6-T
SOF45 D250-12-60-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/L7 SW6-T
SOF45 D315-14-60-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/L7 SW6-T
ONMU 1008... DHUB S845 SNMU 2608...
DCONMS
SOF45WG-R26
Heavy Duty 45° Face Mills
Carrying Wedge Clamped Square OAL OAL_2
or Octagonal Double-Sided
Inserts with 8/16 Cutting Edges DC
DCX APMX DC_2 APMX_2
BD DCX_2
Designation DC BD DCX (1) APMX OAL DC_2 DCX_2 APMX_2 OAL_2 DCONMS DHUB Arbor kg
SOF45WG D100-05-32-R26 104.10 123.50 118.80 7.00 60.80 100.00 123.50 11.00 63.00 32.00 78.00 B 2.46
SOF45WG D100-06-32-R26 104.10 123.50 118.80 7.00 60.80 100.00 123.50 11.00 63.00 32.00 78.00 B 2.33
SOF45WG D125-06-40-R26 129.10 148.50 143.80 7.00 60.80 125.00 148.50 11.00 63.00 40.00 92.00 B 3.67
SOF45WG D125-08-40-R26 129.10 148.50 143.80 7.00 60.80 125.00 148.50 11.00 63.00 40.00 92.00 B 3.41
SOF45WG D160-08-40-R26 164.10 183.80 178.80 7.00 60.80 160.00 183.80 11.00 63.00 40.00 95.00 C 4.84
SOF45WG D160-10-40-R26 164.10 183.80 178.80 7.00 60.80 160.00 183.80 11.00 63.00 40.00 95.00 C 4.58
SOF45WG D200-10-60-R26 204.10 223.50 218.80 7.00 60.80 200.00 223.50 11.00 63.00 60.00 180.00 C 9.47
SOF45WG D200-12-60-R26 204.10 223.50 218.80 7.00 60.80 200.00 223.50 11.00 63.00 60.00 180.00 C 9.20
SOF45WG D250-12-60-R26 254.10 273.30 268.80 7.00 60.80 250.00 273.30 11.00 63.00 60.00 180.00 C 12.68
SOF45WG D250-14-60-R26 254.10 273.30 268.80 7.00 60.80 250.00 273.30 11.00 63.00 60.00 180.00 C 12.44
SOF45WG D315-14-60-R26 319.10 338.50 333.80 7.00 77.80 315.00 338.50 11.00 80.00 60.00 230.00 C 22.43
SOF45WG D315-16-60-R26 319.10 338.50 333.80 7.00 77.80 315.00 338.50 11.00 80.00 60.00 230.00 C 22.22
• For user guide, see pages 542-547
(1) Cutting diameter maximum
For inserts, see pages: ONMU 1008 (509) • S845 SNMU 2608 (502)

Spare Parts
Designation
SOF45WG-R26 TSOF 26-N SR M3.5X0.6-6.5 T10 LW CL-13 INJ SR UNC 5/16-18X1 L/R BLD IP25/S7 SW6-T

228 ISCAR
