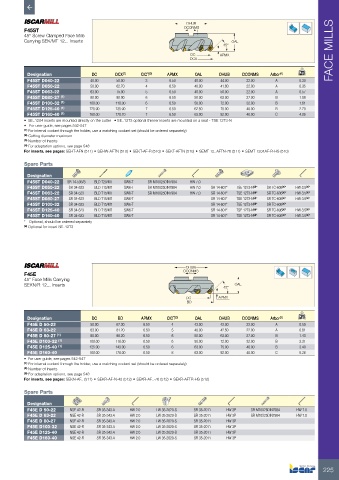

Page 227 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
F45ST
45° Screw Clamped Face Mills
Carrying SEK/MT 12... Inserts OAL
45°
DC APMX FACE MILLS
DCX

Designation DC DCX (2) CICT (3) APMX OAL DHUB DCONMS Arbor (4) kg
F45ST D040-22 40.00 50.00 3 6.50 40.00 44.00 22.00 A 0.30
F45ST D050-22 50.00 62.70 4 6.50 40.00 41.80 22.00 A 0.35
F45ST D063-22 63.00 75.00 5 6.50 40.00 50.00 22.00 A 0.57
F45ST D080-27 (1) 80.00 90.90 6 6.50 50.00 63.00 27.00 B 1.08
F45ST D100-32 (1) 100.00 110.00 6 6.50 50.00 72.00 32.00 B 1.61
F45ST D125-40 (1) 125.00 135.00 7 6.50 62.50 75.00 40.00 B 2.70
F45ST D160-40 (1) 160.00 170.70 7 6.50 63.00 92.00 40.00 C 4.06
• SE..1204 inserts are mounted directly on the cutter • SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N
• For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Cutting diameter maximum
(3) Number of inserts
(4) For adaptation options, see page 548
For inserts, see pages: SEHT-AFN (511) • SEHW-AFTN (510) • SEKT-AF-R (510) • SEKT-AFTN (510) • SEMT 12..AFTN-76 (511) • SEMT 1204AF-R-HS (510)
Spare Parts

Designation
F45ST D040-22 SR 14-536/S BLD T20/M7 SW6-T SR M10X25DIN7984 HW 7.0
F45ST D050-22 SR 34-523 BLD T15/M7 SW6-T SR M10X25DIN7984 HW 7.0 SR 14-601* TSE 12T3-N * SR TC-606 * HW 3.5 *
(a)
(a)
(a)
F45ST D063-22 SR 34-523 BLD T15/M7 SW6-T SR M10X25DIN7984 HW 7.0 SR 14-601* TSE 12T3-N * SR TC-606 * HW 3.5 *
(a)
(a)
(a)
(a)
(a)
F45ST D080-27 SR 34-523 BLD T15/M7 SW6-T SR 14-601* TSE 12T3-N * SR TC-606 * HW 3.5 *
(a)
F45ST D100-32 SR 34-523 BLD T15/M7 SW6-T SR 14-601* TSE 12T3-N * SR TC-606 *
(a)
(a)
F45ST D125-40 SR 34-523 BLD T15/M7 SW6-T SR 14-601* TSE 12T3-N * SR TC-606 * HW 3.5 *
(a)
(a)
(a)
F45ST D160-40 SR 34-523 BLD T15/M7 SW6-T SR 14-601* TSE 12T3-N * SR TC-606 * HW 3.5 *
(a)
(a)
(a)
* Optional, should be ordered separately
(a) Optional for insert SE..12T3
DHUB
DCONMS
F45E
45° Face Mills Carrying
SEKN/R 12... Inserts OAL
45°
DC APMX
BD
Designation DC BD APMX CICT (2) OAL DHUB DCONMS Arbor (3) kg
F45E D 50-22 50.00 67.30 6.50 4 43.00 42.00 22.00 A 0.59
F45E D 63-22 63.00 81.20 6.50 5 40.00 42.50 22.00 A 0.81
F45E D 80-27 (1) 80.00 98.20 6.50 6 50.00 63.00 27.00 B 1.43
F45E D100-32 (1) 100.00 118.00 6.50 6 50.00 72.00 32.00 B 2.31
F45E D125-40 (1) 125.00 143.00 6.50 6 63.00 75.00 40.00 B 3.40
F45E D160-40 160.00 178.00 6.50 8 63.00 92.00 40.00 C 5.28
• For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Number of inserts
(3) For adaptation options, see page 548
For inserts, see pages: SEKN-AF.. (511) • SEKR-AF-N-42 (512) • SEKR-AF..-76 (512) • SEKR-AFTR-HS (512)
Spare Parts

Designation
F45E D 50-22 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P SR M10X25DIN7984 HW 7.0
F45E D 63-22 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P SR M10X25DIN7984 HW 7.0
F45E D 80-27 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P
F45E D100-32 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P
F45E D125-40 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P
F45E D160-40 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P

225
