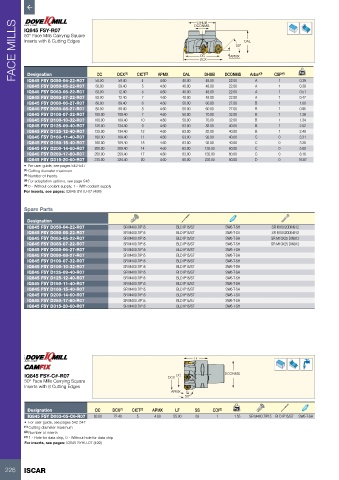

FACE MILLS IQ845 FSY-R07 DCONMS APMX OAL
DHUB
50° Face Mills Carrying Square
Inserts with 8 Cutting Edges
50°
DC
DCX

kg
OAL
DC
Designation
IQ845 FSY D050-04-22-R07
A
22.00
48.00
4
59.40
1
4.60
IQ845 FSY D050-05-22-R07 50.00 DCX (1) CICT (2) APMX 40.00 DHUB DCONMS Arbor (3) CSP (4) 0.39
40.00
4.60
1
A
50.00
59.40
5
0.38
48.00
22.00
IQ845 FSY D063-05-22-R07 63.00 72.40 5 4.60 40.00 48.00 22.00 A 1 0.51
IQ845 FSY D063-07-22-R07 63.00 72.40 7 4.60 40.00 48.00 22.00 A 1 0.47
IQ845 FSY D080-06-27-R07 80.00 89.40 6 4.60 50.00 60.00 27.00 B 1 1.00
IQ845 FSY D080-08-27-R07 80.00 89.40 8 4.60 50.00 60.00 27.00 B 1 0.95
IQ845 FSY D100-07-32-R07 100.00 109.40 7 4.60 50.00 70.00 32.00 B 1 1.36
IQ845 FSY D100-10-32-R07 100.00 109.40 10 4.60 50.00 70.00 32.00 B 1 1.34
IQ845 FSY D125-09-40-R07 125.00 134.40 9 4.60 63.00 82.00 40.00 B 1 2.52
IQ845 FSY D125-12-40-R07 125.00 134.40 12 4.60 63.00 82.00 40.00 B 1 2.49
IQ845 FSY D160-11-40-R07 160.00 169.40 11 4.60 63.00 92.00 40.00 C 0 3.31
IQ845 FSY D160-15-40-R07 160.00 169.40 15 4.60 63.00 92.00 40.00 C 0 3.28
IQ845 FSY D200-14-60-R07 200.00 209.40 14 4.60 63.00 135.00 60.00 C 0 5.80
IQ845 FSY D250-17-60-R07 250.00 259.40 17 4.60 63.00 135.00 60.00 C 0 8.18
IQ845 FSY D315-20-60-R07 315.00 324.40 20 4.60 80.00 220.00 60.00 D 0 16.87
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Number of inserts
(3) For adaptation options, see page 548
(4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: IQ845 SYHU-07 (499)
Spare Parts
Designation
IQ845 FSY D050-04-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X20DIN912
IQ845 FSY D050-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X20DIN912
IQ845 FSY D063-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
IQ845 FSY D063-07-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
IQ845 FSY D080-06-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D080-08-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D100-07-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D100-10-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D125-09-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D125-12-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D160-11-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D160-15-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D200-14-60-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D250-17-60-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
IQ845 FSY D315-20-60-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH

LF

IQ845 FSY-C#-R07 DCX DC DCONMS
50° Face Mills Carrying Square
Inserts with 8 Cutting Edges
APMX
50°

Designation DC DCX (1) CICT (2) APMX LF SS CDI (3) kg
IQ845 FSY D063-05-C6-R07 63.00 72.40 5 4.60 55.00 63 1 1.53 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Number of inserts
(3) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: IQ845 SYHU-07 (499)
