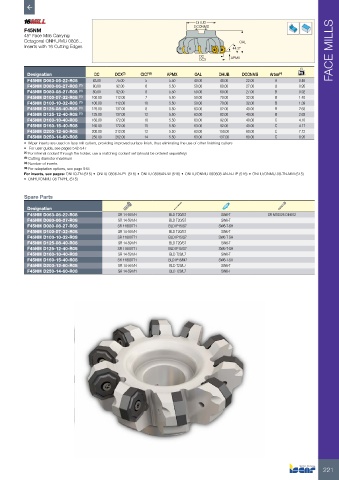

Page 223 - ISCAR(MILLINGCATALOG 38_2021)
P. 223
DHUB
DCONMS
F45NM
45° Face Mills Carrying
Octagonal ONHU/MU 0806... OAL
Inserts with 16 Cutting Edges 44.3° FACE MILLS
DC APMX
DCX
Designation DC DCX (2) CICT (3) APMX OAL DHUB DCONMS Arbor (4) kg
F45NM D063-05-22-R08 63.00 75.00 5 5.50 40.00 48.00 22.00 A 0.46
F45NM D080-06-27-R08 (1) 80.00 92.00 6 5.50 50.00 60.00 27.00 B 0.95
F45NM D080-08-27-R08 (1) 80.00 92.00 8 5.50 50.00 60.00 27.00 B 0.92
F45NM D100-07-32-R08 (1) 100.00 112.00 7 5.50 50.00 70.00 32.00 B 1.40
F45NM D100-10-32-R08 (1) 100.00 112.00 10 5.50 50.00 70.00 32.00 B 1.39
F45NM D125-08-40-R08 (1) 125.00 137.00 8 5.50 63.00 82.00 40.00 B 2.68
F45NM D125-12-40-R08 (1) 125.00 137.00 12 5.50 63.00 82.00 40.00 B 2.63
F45NM D160-10-40-R08 160.00 172.00 10 5.50 63.00 92.00 40.00 C 4.10
F45NM D160-15-40-R08 160.00 172.00 15 5.50 63.00 92.00 40.00 C 4.17
F45NM D200-12-60-R08 200.00 212.00 12 5.50 63.00 150.00 60.00 C 7.12
F45NM D250-14-60-R08 250.00 262.00 14 5.50 63.00 137.00 60.00 C 8.95
• Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters
• For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately)
(2) Cutting diameter maximum
(3) Number of inserts
(4) For adaptation options, see page 548
For inserts, see pages: ONHQ-TN (515) • ONHU 0806-N-PL (516) • ONHU 0806AN-W (516) • ONHU/ONMU 080608 AN-N-HP (516) • ONHU/ONMU-08-TN-MM (515)
• ONHU/ONMU-08-TN/HL (515)
Spare Parts
Designation
F45NM D063-05-22-R08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912
F45NM D080-06-27-R08 SR 14-591/H BLD T20/S7 SW6-T
F45NM D080-08-27-R08 SR 11800771 BLD IP15/S7 SW6-T-SH
F45NM D100-07-32-R08 SR 14-591/H BLD T20/S7 SW6-T
F45NM D100-10-32-R08 SR 11800771 BLD IP15/S7 SW6-T-SH
F45NM D125-08-40-R08 SR 14-591/H BLD T20/S7 SW6-T
F45NM D125-12-40-R08 SR 11800771 BLD IP15/S7 SW6-T-SH
F45NM D160-10-40-R08 SR 14-591/H BLD T20/L7 SW6-T
F45NM D160-15-40-R08 SR 11800771 BLD IP15/M7 SW6-T-SH
F45NM D200-12-60-R08 SR 14-591/H BLD T20/L7 SW6-T
F45NM D250-14-60-R08 SR 14-591/H BLD T20/L7 SW6-T
221
