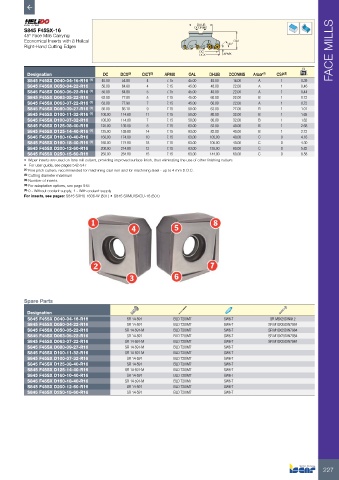

Page 229 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
S845 F45SX-16
45° Face Mills Carrying
Economical Inserts with 8 Helical 45° OAL
Right-Hand Cutting Edges
DC FACE MILLS
DCX APMX

Designation DC DCX (2) CICT (3) APMX OAL DHUB DCONMS Arbor (4) CSP (5) kg
S845 F45SX D040-04-16-R16 (1) 40.00 54.80 4 7.15 45.00 48.00 16.00 A 1 0.39
S845 F45SX D050-04-22-R16 50.00 64.80 4 7.15 45.00 48.00 22.00 A 1 0.46
S845 F45SX D050-05-22-R16 (1) 50.00 64.80 5 7.15 45.00 48.00 22.00 A 1 0.44
S845 F45SX D063-05-22-R16 63.00 77.80 5 7.15 45.00 60.00 22.00 B 1 0.72
S845 F45SX D063-07-22-R16 (1) 63.00 77.90 7 7.15 45.00 60.00 22.00 A 1 0.72
S845 F45SX D080-09-27-R16 (1) 80.00 93.10 9 7.15 50.00 63.00 27.00 B 1 1.01
S845 F45SX D100-11-32-R16 (1) 100.00 114.60 11 7.15 50.00 80.00 32.00 B 1 1.65
S845 F45SX D100-07-32-R16 100.00 114.80 7 7.15 50.00 80.00 32.00 B 1 1.62
S845 F45SX D125-08-40-R16 125.00 139.80 8 7.15 63.00 82.00 40.00 B 1 2.68
S845 F45SX D125-14-40-R16 (1) 125.00 139.80 14 7.15 63.00 82.00 40.00 B 1 2.72
S845 F45SX D160-10-40-R16 160.00 174.80 10 7.15 63.00 105.00 40.00 C 0 4.16
S845 F45SX D160-18-40-R16 (1) 160.00 174.80 18 7.15 63.00 105.00 40.00 C 0 4.30
S845 F45SX D200-12-60-R16 200.00 214.80 12 7.15 63.00 135.00 60.00 C 0 5.82
S845 F45SX D250-15-60-R16 250.00 264.80 15 7.15 63.00 144.00 60.00 C 0 8.58
• Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters.
• For user guide, see pages 542-547
(1) Fine pitch cutters, recommended for machining cast iron and for machining steel - up to 4 mm D.O.C.
(2) Cutting diameter maximum
(3) Number of inserts
(4) For adaptation options, see page 548
(5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: S845 SXHU 1606-W (501) • S845 SXMU/SXCU-16 (501)

Spare Parts

Designation
S845 F45SX D040-04-16-R16 SR 14-591 BLD T20/M7 SW6-T SR M8X25DIN912
S845 F45SX D050-04-22-R16 SR 14-591 BLD T20/M7 SW6-T SR M10X25DIN7984
S845 F45SX D050-05-22-R16 SR 14-591-M BLD T20/M7 SW6-T SR M10X25DIN7984
S845 F45SX D063-05-22-R16 SR 14-591 BLD T20/M7 SW6-T SR M10X25DIN7984
S845 F45SX D063-07-22-R16 SR 14-591-M BLD T20/M7 SW6-T SR M10X25DIN7984
S845 F45SX D080-09-27-R16 SR 14-591-M BLD T20/M7 SW6-T
S845 F45SX D100-11-32-R16 SR 14-591-M BLD T20/M7 SW6-T
S845 F45SX D100-07-32-R16 SR 14-591 BLD T20/M7 SW6-T
S845 F45SX D125-08-40-R16 SR 14-591 BLD T20/M7 SW6-T
S845 F45SX D125-14-40-R16 SR 14-591-M BLD T20/M7 SW6-T
S845 F45SX D160-10-40-R16 SR 14-591 BLD T20/M7 SW6-T
S845 F45SX D160-18-40-R16 SR 14-591-M BLD T20/M7 SW6-T
S845 F45SX D200-12-60-R16 SR 14-591 BLD T20/M7 SW6-T
S845 F45SX D250-15-60-R16 SR 14-591 BLD T20/M7 SW6-T

227
