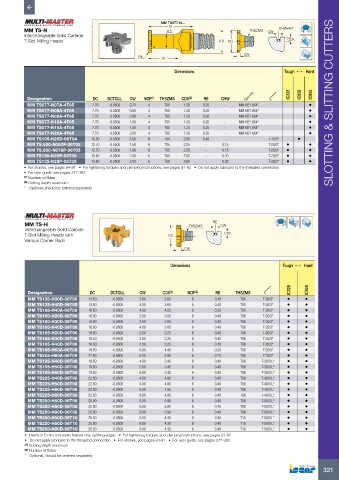

Page 323 - ISCAR(MILLINGCATALOG 38_2021)

MM TS077-N...
15
MM TS-N 4.5 THSZMS CW CHWx45°
Interchangeable Solid Carbide
T-Slot Milling Heads 8.0 DC CDX

RE CW
10
Dimensions Tough 1 Hard

IC328 IC928 IC908
Designation DC DCTOLL CW NOF (1) THSZMS CDX (2) RE CHW
MM TS077-N07A-4T05 7.70 -0.0500 0.70 4 T05 1.20 0.20 - MM KEY 6X4* • SLOTTING & SLITTING CUTTERS
MM TS077-N08A-4T05 7.70 -0.0500 0.80 4 T05 1.20 0.20 - MM KEY 6X4* •
MM TS077-N09A-4T05 7.70 -0.0500 0.90 4 T05 1.20 0.20 - MM KEY 6X4* •
MM TS077-N10A-4T05 7.70 -0.0500 1.00 4 T05 1.20 0.20 - MM KEY 6X4* •
MM TS077-N15A-4T05 7.70 -0.0500 1.50 4 T05 1.20 0.20 - MM KEY 6X4* •
MM TS077-N20A-4T05 7.70 -0.0500 2.00 4 T05 1.20 0.20 - MM KEY 6X4* •
MM TS105-N20D-06T04 10.50 -0.0500 2.00 6 T04 2.00 0.40 - T-15/3* •
MM TS.500-N062P-06T05 12.70 -0.0500 1.58 6 T05 2.25 - 0.15 T-20/3* • •
MM TS.500-N078P-06T05 12.70 -0.0500 1.98 6 T05 2.25 - 0.15 T-20/3* • •
MM TS135-N20P-06T05 13.50 -0.0500 2.00 6 T05 2.65 - 0.20 T-20/3* • •
MM TS135-N25P-06T05 13.50 -0.0500 2.50 6 T05 2.65 - 0.20 T-20/3* • •
• For shanks, see pages 84-91 • For tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection
• For user guide, see pages 377-383
(1) Number of flutes
(2) Cutting depth maximum
* Optional, should be ordered separately

RE
MM TS-H THSZMS CW
Interchangeable Solid Carbide
T-Slot Milling Heads with DC CDX
Various Corner Radii
CW

Dimensions Tough 1 Hard

IC328 IC908
Designation DC DCTOLL CW CDX (1) NOF (2) RE THSZMS
MM TS135-H30D-06T05 13.50 -0.0500 3.00 2.65 6 0.40 T05 T-20/3* • •
MM TS135-H40D-06T05 13.50 -0.0500 4.00 2.65 6 0.40 T05 T-20/3* • •
MM TS165-H40A-06T05 16.50 -0.0500 4.00 4.25 6 0.20 T05 T-20/3* • •
MM TS160-H20D-06T06 16.00 -0.0500 2.00 3.00 6 0.40 T06 T-20/3* • •
MM TS160-H30D-06T06 16.00 -0.0500 3.00 3.00 6 0.40 T06 T-25/3* • •
MM TS160-H40D-06T06 16.00 -0.0500 4.00 3.00 6 0.40 T06 T-25/3* • •
MM TS165-H20D-06T06 16.50 -0.0500 2.00 3.25 6 0.40 T06 T-20/3* • •
MM TS165-H30D-06T06 16.50 -0.0500 3.00 3.25 6 0.40 T06 T-25/3* • •
MM TS165-H40D-06T06 16.50 -0.0500 4.00 3.25 6 0.40 T06 T-25/3* • •
MM TS195-H60A-06T06 19.50 -0.0500 6.00 4.45 6 0.20 T06 T-25/3* • •
MM TS225-H60A-06T06 22.50 -0.0500 6.00 5.95 6 0.20 T06 T-25/3* • •
MM TS195-H40D-06T08 19.50 -0.0500 4.00 3.45 6 0.40 T08 T-30/3 L* • •
MM TS195-H50D-06T08 19.50 -0.0500 5.00 3.45 6 0.40 T08 T-30/3 L* • •
MM TS195-H60D-06T08 19.50 -0.0500 6.00 3.45 6 0.40 T08 T-30/3 L* • •
MM TS225-H40D-06T08 22.50 -0.0500 4.00 4.90 6 0.40 T08 T-40/3 L* • •
MM TS225-H50D-06T08 22.50 -0.0500 5.00 4.95 6 0.40 T08 T-40/3 L* • •
MM TS225-H60D-06T08 22.50 -0.0500 6.00 4.95 6 0.40 T08 T-40/3 L* • •
MM TS225-H80D-06T08 22.50 -0.0500 8.00 4.95 6 0.40 T08 T-40/3 L* • •
MM TS250-H50D-06T08 25.00 -0.0500 5.00 5.90 6 0.40 T08 T-50/3 L* • •
MM TS250-H60D-06T08 25.00 -0.0500 6.00 5.90 6 0.40 T08 T-50/3 L* • •
MM TS250-H80D-06T08 25.00 -0.0500 8.00 5.90 6 0.40 T08 T-50/3 L* • •
MM TS250-H50D-06T10 25.00 -0.0500 5.00 4.30 6 0.40 T10 T-50/3 L* • •
MM TS250-H60D-06T10 25.00 -0.0500 6.00 4.30 6 0.40 T10 T-50/3 L* • •
MM TS250-H80D-06T10 25.00 -0.0500 8.00 4.30 6 0.40 T10 T-50/3 L* • •
• Inserts in 5 mm and wider feature chip splitting edges • For tightening torques and clamping instructions, see pages 91-92
• Do not apply lubricant to the threaded connection • For shanks, see pages 84-91 • For user guide, see pages 377-383
(1) Cutting depth maximum
(2) Number of flutes
* Optional, should be ordered separately

321
