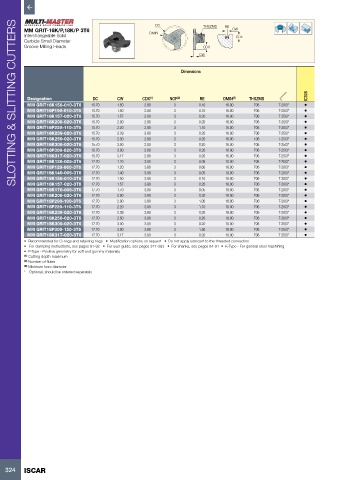

SLOTTING & SLITTING CUTTERS
DC
THSZMS RE
MM GRIT-16K/P,18K/P 3T6 CW
Interchangeable Solid DMIN CDX
Carbide Small Diameter
Groove Milling Heads CDX
CW

Dimensions

IC908
Designation DC CW CDX (1) NOF (2) RE DMIN (3) THSZMS
MM GRIT16K150-010-3T6 15.70 1.50 2.80 3 0.10 16.00 T06 T-20/3* •
MM GRIT16P150-010-3T6 15.70 1.50 2.80 3 0.10 16.00 T06 T-20/3* •
MM GRIT16K157-020-3T6 15.70 1.57 2.80 3 0.20 16.00 T06 T-25/3* •
MM GRIT16K200-020-3T6 15.70 2.00 2.80 3 0.20 16.00 T06 T-20/3* •
MM GRIT16P220-110-3T6 15.70 2.20 2.80 3 1.10 16.00 T06 T-20/3* •
MM GRIT16K239-020-3T6 15.70 2.39 2.80 3 0.20 16.00 T06 T-25/3* •
MM GRIT16K250-020-3T6 15.70 2.50 2.80 3 0.20 16.00 T06 T-25/3* •
MM GRIT16K300-020-3T6 15.70 3.00 2.80 3 0.20 16.00 T06 T-25/3* •
MM GRIT16P300-020-3T6 15.70 3.00 2.80 3 0.20 16.00 T06 T-25/3* •
MM GRIT16K317-020-3T6 15.70 3.17 2.80 3 0.20 16.00 T06 T-25/3* •
MM GRIT18K120-005-3T6 17.70 1.20 3.80 3 0.05 18.00 T06 T-20/3* •
MM GRIT18P120-060-3T6 17.70 1.20 3.80 3 0.60 18.00 T06 T-20/3* •
MM GRIT18K140-005-3T6 17.70 1.40 3.80 3 0.05 18.00 T06 T-20/3* •
MM GRIT18K150-010-3T6 17.70 1.50 3.80 3 0.10 18.00 T06 T-20/3* •
MM GRIT18K157-020-3T6 17.70 1.57 3.80 3 0.20 18.00 T06 T-20/3* •
MM GRIT18K170-005-3T6 17.70 1.70 3.80 3 0.05 18.00 T06 T-20/3* •
MM GRIT18K200-020-3T6 17.70 2.00 3.80 3 0.20 18.00 T06 T-20/3* •
MM GRIT18P200-100-3T6 17.70 2.00 3.80 3 1.00 18.00 T06 T-20/3* •
MM GRIT18P220-110-3T6 17.70 2.20 3.80 3 1.10 18.00 T06 T-20/3* •
MM GRIT18K239-020-3T6 17.70 2.39 3.80 3 0.20 18.00 T06 T-20/3* •
MM GRIT18K250-020-3T6 17.70 2.50 3.80 3 0.20 18.00 T06 T-20/3* •
MM GRIT18K300-020-3T6 17.70 3.00 3.80 3 0.20 18.00 T06 T-25/3* •
MM GRIT18P300-150-3T6 17.70 3.00 3.80 3 1.50 18.00 T06 T-25/3* •
MM GRIT18K317-020-3T6 17.70 3.17 3.80 3 0.20 18.00 T06 T-25/3* •
• Recommended for O-rings and retaining rings • Modification options on request • Do not apply lubricant to the threaded connection
• For clamping instructions, see pages 91-92 • For user guide, see pages 377-383 • For shanks, see pages 84-91 • K-Type - For general steel machining
• P-Type - Positive geometry for soft and gummy materials
(1) Cutting depth maximum
(2) Number of flutes
(3) Minimum bore diameter
* Optional, should be ordered separately
