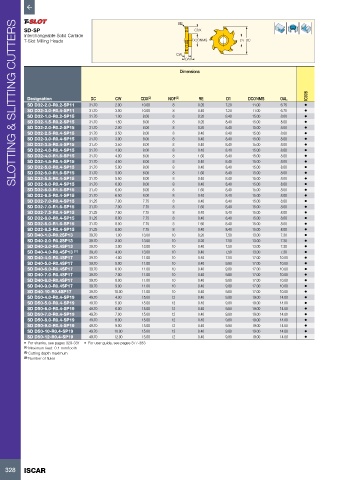

Page 330 - ISCAR(MILLINGCATALOG 38_2021)

SLOTTING & SLITTING CUTTERS
RE

SD-SP CDX
Interchangeable Solid Carbide
T-Slot Milling Heads DCONMS D1 DC

CW
OAL
Dimensions

IC908
Designation DC CW CDX (2) NOF (3) RE D1 DCONMS OAL
SD D32-2.0-R0.2-SP11 31.70 2.00 10.00 8 0.20 7.20 11.00 6.75 •
SD D32-3.0-R0.4-SP11 31.70 3.00 10.00 8 0.40 7.20 11.00 6.75 •
SD D32-1.0-R0.2-SP15 31.70 1.00 8.00 8 0.20 8.40 15.00 8.00 •
SD D32-1.5-R0.2-SP15 31.70 1.50 8.00 8 0.20 8.40 15.00 8.00 •
SD D32-2.0-R0.2-SP15 31.70 2.00 8.00 8 0.20 8.40 15.00 8.00 •
SD D32-2.5-R0.4-SP15 31.70 2.50 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-3.0-R0.4-SP15 31.70 3.00 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-3.5-R0.4-SP15 31.70 3.50 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-4.0-R0.4-SP15 31.70 4.00 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-4.0-R1.6-SP15 31.70 4.00 8.00 8 1.60 8.40 15.00 8.00 •
SD D32-4.5-R0.4-SP15 31.70 4.50 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-5.0-R0.4-SP15 31.70 5.00 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-5.0-R1.6-SP15 31.70 5.00 8.00 8 1.60 8.40 15.00 8.00 •
SD D32-5.5-R0.4-SP15 31.70 5.50 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-6.0-R0.4-SP15 31.70 6.00 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-6.0-R1.6-SP15 31.70 6.00 8.00 8 1.60 8.40 15.00 8.00 •
SD D32-6.5-R0.4-SP15 31.70 6.50 8.00 8 0.40 8.40 15.00 8.00 •
SD D32-7.0-R0.4-SP15 31.25 7.00 7.75 8 0.40 8.40 15.00 8.00 •
SD D32-7.0-R1.6-SP15 31.70 7.00 7.75 8 1.60 8.40 15.00 8.00 •
SD D32-7.5-R0.4-SP15 31.25 7.50 7.75 8 0.40 8.40 15.00 8.00 •
SD D32-8.0-R0.4-SP15 31.25 8.00 7.75 8 0.40 8.40 15.00 8.00 •
SD D32-8.0-R1.6-SP15 31.70 8.00 7.75 8 1.60 8.40 15.00 8.00 •
SD D32-8.5-R0.4-SP15 31.25 8.50 7.75 8 0.40 8.40 15.00 8.00 •
SD D40-1.0-R0.2SP13 39.70 1.00 13.00 10 0.20 7.50 13.00 7.30 •
SD D40-2.0-R0.2SP13 39.70 2.00 13.00 10 0.20 7.50 13.00 7.30 •
SD D40-3.0-R0.4SP13 39.70 3.00 13.00 10 0.40 7.50 13.00 7.30 •
SD D40-4.0-R0.4SP13 (1) 39.70 4.00 13.00 10 0.40 7.50 13.00 7.30 •
SD D40-4.0-R0.4SP17 39.70 4.00 11.00 10 0.40 7.50 17.00 10.00 •
SD D40-5.0-R0.4SP17 39.70 5.00 11.00 10 0.40 9.80 17.00 10.00 •
SD D40-6.0-R0.4SP17 39.70 6.00 11.00 10 0.40 9.80 17.00 10.00 •
SD D40-7.0-R0.4SP17 39.70 7.00 11.00 10 0.40 9.80 17.00 10.00 •
SD D40-8.0-R0.4SP17 39.70 8.00 11.00 10 0.40 9.80 17.00 10.00 •
SD D40-9.0-R0.4SP17 39.70 9.00 11.00 10 0.40 9.80 17.00 10.00 •
SD D40-10-R0.4SP17 39.70 10.00 11.00 10 0.40 9.80 17.00 10.00 •
SD D50-4.0-R0.4-SP19 49.70 4.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-5.0-R0.4-SP19 49.70 5.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-6.0-R0.4-SP19 49.70 6.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-7.0-R0.4-SP19 49.70 7.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-8.0-R0.4-SP19 49.70 8.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-9.0-R0.4-SP19 49.70 9.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-10-R0.4-SP19 49.70 10.00 15.00 12 0.40 9.80 19.00 14.00 •
SD D50-12-R0.4-SP19 49.70 12.00 15.00 12 0.40 9.80 19.00 14.00 •
• For shanks, see pages 329-331 • For user guide, see pages 377-383
(1) Maximum feed: 0.1 mm/tooth
(2) Cutting depth maximum
(3) Number of flutes
