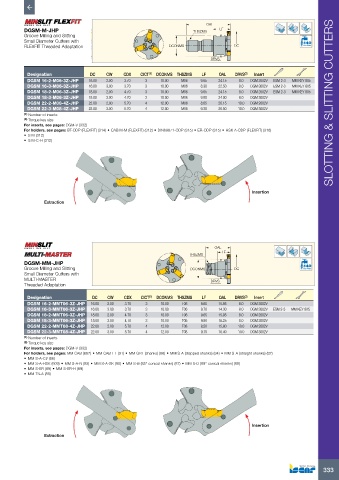

Page 335 - ISCAR(MILLINGCATALOG 38_2021)

OAL

DGSM-M-JHP THSZMS LF
Groove Milling and Slitting

Small Diameter Cutters with
FLEXFIT Threaded Adaptation DCONMS DC Bar Max
DRVS

Designation DC CW CDX CICT (1) DCONMS THSZMS LF OAL DRVS (2) Insert
DGSM 16-2-M06-3Z-JHP 16.00 2.00 3.70 3 10.00 M06 9.65 24.15 8.0 DGM 2002V ESM 2-3 MM KEY 8X5
DGSM 16-3-M06-3Z-JHP 16.00 3.00 3.70 3 10.00 M06 8.30 22.50 8.0 DGM 3002V ESM 2-3 MM KEY 8X5
DGSM 18-2-M06-3Z-JHP 18.00 2.00 4.70 3 10.00 M06 9.65 24.15 8.0 DGM 2002V ESM 2-3 MM KEY 8X5
DGSM 18-3-M06-3Z-JHP 18.00 3.00 4.70 3 10.00 M06 9.80 24.00 8.0 DGM 3002V
DGSM 22-2-M08-4Z-JHP 22.00 2.00 5.70 4 12.00 M08 8.65 26.15 10.0 DGM 2002V SLOTTING & SLITTING CUTTERS
DGSM 22-3-M08-4Z-JHP 22.00 3.00 5.70 4 12.00 M08 9.30 26.50 10.0 DGM 3002V
(1) Number of inserts
(2) Torque key size
For inserts, see pages: DGM-V (332)
For holders, see pages: BT-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316)
• S M (312)
• S M-C-H (312)

Insertion
Extraction

OAL

LF
THSZMS

DGSM-MM-JHP
Groove Milling and Slitting DCONMS DC Bar Max
Small Diameter Cutters with
MULTI-MASTER DRVS
Threaded Adaptation
Designation DC CW CDX CICT (1) DCONMS THSZMS LF OAL DRVS (2) Insert
DGSM 16-2-MMT06-3Z-JHP 16.00 2.00 3.70 3 10.00 T06 9.65 15.95 8.0 DGM 2002V
DGSM 16-3-MMT06-3Z-JHP 16.00 3.00 3.70 3 10.00 T06 9.70 14.30 8.0 DGM 3002V ESM 2-3 MM KEY 8X5
DGSM 18-2-MMT06-3Z-JHP 18.00 2.00 4.70 3 10.00 T06 9.65 15.95 8.0 DGM 2002V
DGSM 18-3-MMT06-3Z-JHP 18.00 3.00 4.70 3 10.00 T06 9.90 16.25 8.0 DGM 3002V
DGSM 22-2-MMT08-4Z-JHP 22.00 2.00 5.70 4 12.00 T08 8.50 15.80 10.0 DGM 2002V
DGSM 22-3-MMT08-4Z-JHP 22.00 3.00 5.70 4 12.00 T08 9.15 16.40 10.0 DGM 3002V
(1) Number of inserts
(2) Torque key size
For inserts, see pages: DGM-V (332)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
• MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
• MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)

Insertion
Extraction

333
