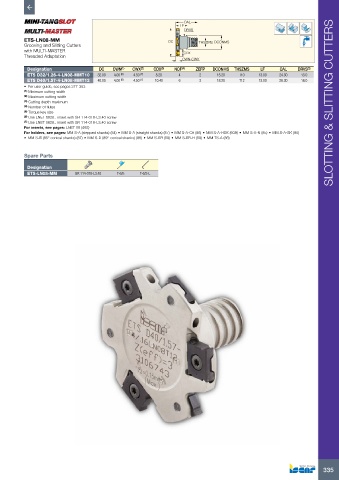

Page 337 - ISCAR(MILLINGCATALOG 38_2021)

OAL
LF

DRVS

ETS-LN08-MM DC THSZMS DCONMS
Grooving and Slitting Cutters
with MULTI-MASTER CDX
Threaded Adaptation
CWN-CWX
Designation DC CWN (1) CWX (2) CDX (3) NOF (4) ZEFP DCONMS THSZMS LF OAL DRVS (5)
ETS D32/1.26-4-LN08-MMT10 32.00 4.00 (6) 4.50 (7) 8.20 4 2 15.20 T10 13.00 24.30 13.0
ETS D40/1.57-4-LN08-MMT12 40.00 4.00 4.50 10.40 6 3 18.20 T12 13.00 26.30 16.0
(6)
(7)
• For user guide, see pages 377-383
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum SLOTTING & SLITTING CUTTERS
(4) Number of flutes
(5) Torque key size
(6) Use LNET 0826.. insert with SR 114-018-L3.40 screw
(7) Use LNET 0828.. insert with SR 114-018-L3.40 screw
For inserts, see pages: LNET 08 (492)
For holders, see pages: MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90)
• MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)

Spare Parts

Designation
ETS-LN08-MM SR 114-018-L3.40 T-6/5 T-6/3-L

335
