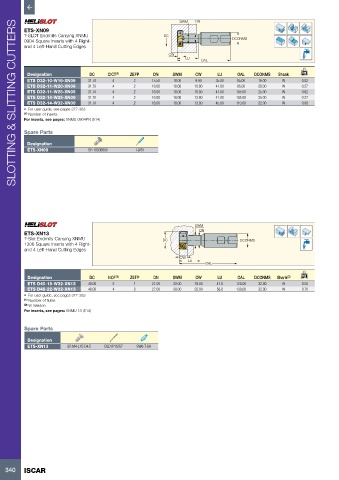

Page 342 - ISCAR(MILLINGCATALOG 38_2021)

SWM DN
SLOTTING & SLITTING CUTTERS

ETS-XN09

T-SLOT Endmills Carrying XNMU DC
0904 Square Inserts with 4 Right- DCONMS
and 4 Left-Hand Cutting Edges
CW
LU
OAL
Designation DC CICT (1) ZEFP DN SWM CW LU OAL DCONMS Shank kg
ETS D32-10-W16-XN09 31.70 4 2 15.50 18.00 9.90 35.00 85.00 16.00 W 0.02
ETS D32-11-W20-XN09 31.70 4 2 16.00 18.00 10.80 41.00 95.00 20.00 W 0.27
ETS D32-11-W25-XN09 31.70 4 2 16.00 18.00 10.80 41.00 105.00 25.00 W 0.62
ETS D32-14-W25-XN09 31.70 4 2 16.00 18.00 13.80 41.00 105.00 25.00 W 0.27
ETS D32-14-W32-XN09 31.70 4 2 16.00 18.00 13.80 45.00 110.00 32.00 W 0.88
• For user guide, see pages 377-383
(1) Number of inserts
For inserts, see pages: XNMU 0904PN (514)

Spare Parts

Designation
ETS-XN09 SR 10508600 T-9/51

SWM
DN
ETS-XN13
T-Slot Endmills Carrying XNMU DC DCONMS
1306 Square Inserts with 4 Right-
and 4 Left-Hand Cutting Edges
CW
LU
OAL
Designation DC NOF (1) ZEFP DN SWM CW LU OAL DCONMS Shank (2) kg
ETS D40-18-W32-XN13 40.00 2 1 21.00 22.00 18.00 47.0 120.00 32.00 W 0.55
ETS D48-22-W32-XN13 48.00 4 2 27.00 28.00 22.00 58.0 130.00 32.00 W 0.70
• For user guide, see pages 377-383
(1) Number of flutes
(2) W-Weldon
For inserts, see pages: XNMU 13 (514)

Spare Parts

Designation
ETS-XN13 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH

340 ISCAR
