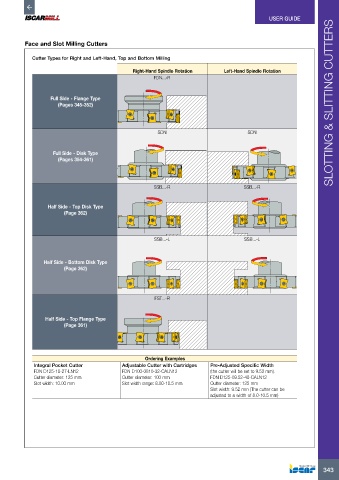

USER GUIDE




          Face and Slot Milling Cutters

            Cutter Types for Right and Left-Hand, Top and Bottom Milling

                                                Right-Hand Spindle Rotation     Left-Hand Spindle Rotation
                                                       FDN...-R



                   Full Side - Flange Type
                     (Pages 345-352)                                                                                  SLOTTING & SLITTING CUTTERS




                                                        SDN                             SDN



                    Full Side - Disk Type
                     (Pages 354-361)




                                                       SSB...-R                        SSB...-R



                  Half Side - Top Disk Type
                        (Page 362)




                                                       SSB...-L                        SSB...-L



                Half Side - Bottom Disk Type
                        (Page 362)





                                                       FST...-R


                 Half Side - Top Flange Type
                        (Page 361)






                                                    Ordering Examples
             Integral Pocket Cutter         Adjustable Cutter with Cartridges  Pre-Adjusted Specific Width
             FDN D125-10-27-LN12            FDN D100-0810-32-CALN12        (the cutter will be set to 9.52 mm).
             Cutter diameter: 125 mm        Cutter diameter: 100 mm        FDN D125-09.52-40-CALN12
             Slot width: 10.00 mm           Slot width range: 8.00-10.5 mm  Cutter diameter: 125 mm
                                                                           Slot width: 9.52 mm (The cutter can be
                                                                           adjusted to a width of 8.0-10.5 mm)
