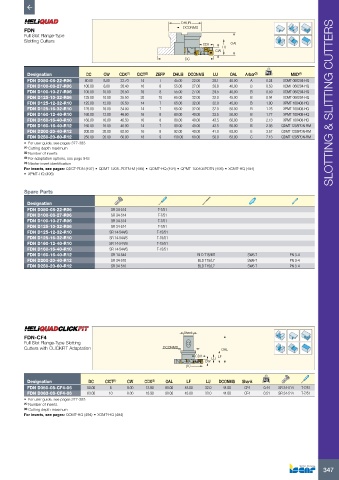

Page 349 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
FDN
Full Slot Flange-Type

Slotting Cutters
CDX OAL
LU
CW
DC
Designation DC CW CDX (1) CICT (2) ZEFP DHUB DCONMS LU OAL Arbor (3) kg MIID (4)
FDN D080-08-22-R06 80.00 8.00 22.70 14 7 45.00 22.00 28.1 40.00 A 0.34 XOMT 060204-HQ
FDN D100-08-27-R06 100.00 8.00 26.40 16 8 55.00 27.00 28.8 40.00 B 0.53 XOMT 060204-HQ
FDN D100-10-27-R06 100.00 10.00 26.50 16 8 55.00 27.00 29.5 40.00 B 0.59 XOMT 060204-HQ
FDN D125-10-32-R06 125.00 10.00 35.50 20 10 65.00 32.00 32.0 45.00 B 0.94 XOMT 060204-HQ
FDN D125-12-32-R10 125.00 12.00 35.50 14 7 65.00 32.00 32.0 45.00 B 1.00 XPMT 100408-HQ SLOTTING & SLITTING CUTTERS
FDN D125-16-32-R10 125.00 16.00 34.00 14 7 65.00 32.00 37.0 50.00 B 1.25 XPMT 100408-HQ
FDN D160-12-40-R10 160.00 12.00 46.90 16 8 80.00 40.00 33.5 50.00 B 1.77 XPMT 100408-HQ
FDN D160-16-40-R10 160.00 16.00 46.50 16 8 80.00 40.00 43.5 60.00 B 2.13 XPMT 100408-HQ
FDN D160-16-40-R12 160.00 16.00 46.90 14 7 80.00 40.00 43.5 60.00 B 2.08 QDMT 1205PDN-RM
FDN D200-20-40-R12 200.00 20.00 62.00 16 8 92.00 40.00 41.0 63.00 E 3.57 QDMT 1205PDN-RM
FDN D250-20-60-R12 250.00 20.00 60.00 18 9 130.00 60.00 50.0 63.00 C 7.13 QDMT 1205PDN-RM
• For user guide, see pages 377-383
(1) Cutting depth maximum
(2) Number of inserts
(3) For adaptation options, see page 548
(4) Master insert identification
For inserts, see pages: QDCT-PDN (497) • QDMT 1205..PDTN-M (498) • QOMT-HQ (494) • QPMT 100408PDTN (495) • XOMT-HQ (494)
• XPMT-HQ (496)

Spare Parts

Designation
FDN D080-08-22-R06 SR 34-514 T-7/51
FDN D100-08-27-R06 SR 34-514 T-7/51
FDN D100-10-27-R06 SR 34-514 T-7/51
FDN D125-10-32-R06 SR 34-514 T-7/51
FDN D125-12-32-R10 SR 14-544/S T-15/51
FDN D125-16-32-R10 SR 14-544/S T-15/51
FDN D160-12-40-R10 SR 14-544/S T-15/51
FDN D160-16-40-R10 SR 14-544/S T-15/51
FDN D160-16-40-R12 SR 14-544 BLD T15/M7 SW6-T PN 3-4
FDN D200-20-40-R12 SR 34-510 BLD T15/L7 SW6-T PN 3-4
FDN D250-20-60-R12 SR 34-510 BLD T15/L7 SW6-T PN 3-4

Shank

FDN-CF4
Full Slot Flange-Type Slotting
Cutters with CLICKFIT Adaptation DCONMS OAL
CDX LU LF
CW
DC

Designation DC CICT (1) CW CDX (2) OAL LF LU DCONMS Shank kg
FDN D050-08-CF4-06 50.00 8 8.00 13.90 90.00 48.00 32.0 44.00 CF4 0.44 SR 34-514 T-7/51
FDN D063-08-CF4-06 63.00 10 8.00 18.90 90.00 48.00 33.0 44.00 CF4 0.51 SR 34-514 T-7/51
• For user guide, see pages 377-383
(1) Number of inserts
(2) Cutting depth maximum
For inserts, see pages: QOMT-HQ (494) • XOMT-HQ (494)
