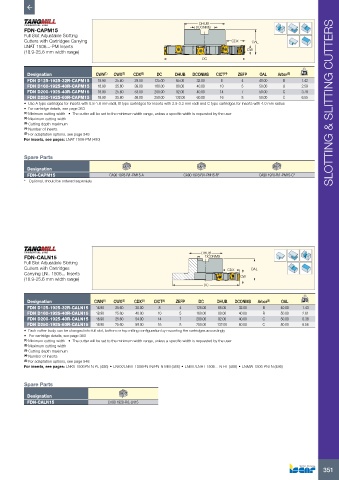

Page 353 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
FDN-CAPM15
Full Slot Adjustable Slotting
Cutters with Cartridges Carrying CDX OAL
LNAT 1506...-PM Inserts
(18.9-25.6 mm width range) CW
DC

Designation CWN (1) CWX (2) CDX (3) DC DHUB DCONMS CICT (4) ZEFP OAL Arbor (5) kg
FDN D125-1925-32R-CAPM15 18.90 25.60 29.00 125.00 65.00 32.00 8 4 40.00 B 1.42
FDN D160-1925-40R-CAPM15 18.90 25.60 39.00 160.00 80.00 40.00 10 5 50.00 B 2.59
FDN D200-1925-40R-CAPM15 18.90 25.60 53.00 200.00 92.00 40.00 14 7 50.00 C 3.79
FDN D250-1925-60R-CAPM15 18.90 25.60 58.00 250.00 132.00 60.00 16 8 50.00 C 6.55
• Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for inserts with 4.0 mm radius SLOTTING & SLITTING CUTTERS
• For cartridge details, see page 363
(1) Minimum cutting width • The cutter will be set to the minimum width range, unless a specific width is requested by the user
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Number of inserts
(5) For adaptation options, see page 548
For inserts, see pages: LNAT 1506-PM (490)

Spare Parts
Designation
FDN-CAPM15 CA90 1928-R/L-PM15-A CA90 1928-R/L-PM15-B* CA90 1928-R/L-PM15-C*
* Optional, should be ordered separately

DHUB

FDN-CALN15 DCONMS
Full Slot Adjustable Slotting
Cutters with Cartridges CDX OAL
Carrying LN.. 1506... Inserts
(18.9-25.6 mm width range) CW
DC

Designation CWN (1) CWX (2) CDX (3) CICT (4) ZEFP DC DHUB DCONMS Arbor (5) OAL kg
FDN D125-1925-32R-CALN15 18.90 25.60 30.00 8 4 125.00 65.00 32.00 B 40.00 1.43
FDN D160-1925-40R-CALN15 18.90 25.60 40.00 10 5 160.00 80.00 40.00 B 50.00 2.61
FDN D200-1925-40R-CALN15 18.90 25.60 54.00 14 7 200.00 92.00 40.00 C 50.00 0.38
FDN D250-1925-60R-CALN15 18.90 25.60 59.00 16 8 250.00 132.00 60.00 C 50.00 6.56
• Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly
• For cartridge details, see page 363
(1) Minimum cutting width • The cutter will be set to the minimum width range, unless a specific width is requested by the user
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Number of inserts
(5) For adaptation options, see page 548
For inserts, see pages: LNKX 1506PN-N PL (486) • LNKX/LNMT 1506PNTN/PN-N MM (486) • LNMT/LNHT 1506...-N HT (488) • LNMW 1506 PNTN (486)

Spare Parts
Designation
FDN-CALN15 CA90 1928-R/L-LN15

351
